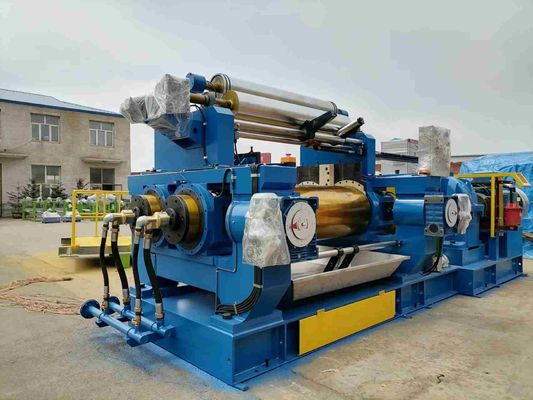

560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized

  • 560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized
  • 560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized
  • 560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized
  • 560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized
  • 560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized
  • 560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized
  • 560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized
Place of Origin Shandong, China
Brand Name HUALONG
Certification CE ISO
Model Number XK-560
Minimum Order Quantity 1
Price $47000/sets
Packaging Details standard packing
Delivery Time 30 days
Supply Ability 10 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter Of Roll(mm) 560mm Roll Ratio(Front/Back) 1:1.2
Warranty Of Core Components 2 Years Cooling Mode Water Cooling
Voltage Customized, Customized Power (kW) 90kw
Machine Type Rubber Mixing Mill Machine Model Type XK-560
Bush Type Bearing Gearbox Hard Gear Reducer
Highlight

560mm Rubber Mixing Mill

,

XK560 Open Rubber Mixing Mill

,

Customized Open Mixing Mill
Leave a Message
Product Description
XK-560 Rubber Mixing Mill ,Two Open Roll Mixing Mill Machine

560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized 0


rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.

560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized 1

1.The roller materials are choromium-molybdenum,centrifugally cast,hardness of chilled on the surface is 75HS.

   roller type : hollow smooth roller ,drilled smooth roll ,hollow grooved roll

2.Bearing type :auto aligning bearing

   Brand:FAG

3.Reducer:high strength and low carbon alloy steel quenching tooth surface.

4.adjustment device : Manual type , motorized type ,hydraulic type

5.Stock guide : fixed type,manually moving type,turn over and hydraulic moving type

6.Safety device :Mechnical safety protection device ,IR sensor type device

7.Emergeny stop device : Emergency stop button ,trip ban rope ,foot switch ,grating and riding blanket

8.Gearbox : Hardened teeth single shaft gearbox, hardened teeth double shaft gearbox

9.Motor : DC motor or AC motor

560mm XK560 Two Roll Rubber Mixing Mill Open Type Customized 2

It is mainly used for rubber mixing, warming, sheeting, plasticizing, etc.
1. Rolls are made of chilled cast iron alloy, including hollow roll and peripheral drilled roll.
2. There are three types of nip adjustment: manual, electric and hydraulic.
3. Driven by DC or AC motor and single motor or double motor can be chosen.
4. Equipped with emergency stop button, chest touch switch, pull rope switch and other safety devices ensure safi
5. Stock blender is optional according to the processing procedure.

Type
XK-160
XK-230
XK-250
XK-300
XK- 360
Working diameter of rolls (mm)
160
230
250
300
360
Working Length of rolls (mm)
320
600
620
750
900
Front roll surface speed (m/min)
8.95
10.21
14.1
15.1
16.25
Friction ratio
1:1.35
1:1.19
1:1.17
1:1.25
1:1.25
Max. nip (mm)
4.5
7
8
10
10
Capacity per batch (kg)
1-2
6-10
8-15
15-20
20-25
Motor power (KW)
5.5
15
18.5
22
30
Size (L*W*H) (mm)
1380*850*1320
2800*1200*1120
3400*1500*1500
2450*1500*1550
3780*1850*1750
Type
XK-400
XK-450
XK-560
XK-550B
XK-660
Working diameter of rolls (mm)
400
450
560/510
550
660
Working Length of rolls (mm)
1000
1200
1530
1500
2130
Front roll surface speed (m/min)
18.65
24.26
27.72
27.94
28.6
Friction ratio
1:1.27
1:1.27
1:1.2
1:1.22
1:1.24
Max. nip (mm)
10
15
15
15
15
Capacity per batch (kg)
18-35
25-50
35-50
50-60
165
Motor power (KW)
37
55
90
110
245
Size (L*W*H) (mm)
4350*1850*1785
5200*2380*1840
5845*2284*1978
5878*2475*2045
7455*3662*2080

Advantage :

Acoording to other supplier,we have advantage as follows:

1)we have our own fire retreading klin,.so all

foundation and bracket after fire retreading,also we have our own unpopular

milling machine,one-time finishing,that will not deformation for ever.

for other factory,they don't have this.as we know,in qingdao city,only our factory have this.

2)we use best brand spare parts,for example,bearing,reducer and motor,

we use 8 sets bearing,as we know,other supplier only use 4 sets.

3)our technical people and worker has very good experience.who worked for many years.
