Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B

  • Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B
  • Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B
  • Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B
  • Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B
  • Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B
  • Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B
  • Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B
Place of Origin Shandong, China
Brand Name HUALONG
Certification CE,ISO
Model Number XK550B1
Minimum Order Quantity 1 set
Price $45,000.00/sets >=1 sets
Packaging Details standard packing
Delivery Time 50 days
Supply Ability 10 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter Of Roll(mm) 550mm Rotation Speed Of Front Roll(rpm) 28 - 31 Rpm
Length Of Roll(mm) 1530 Mm Cooling Mode Water Cooling
Dimension(L*W*H) 5200*2380*1840mm Key Selling Points Long Service Life
Applicable Industries Rubber Plastic Industry Machine Type Rubber Mixing Mill Machine
Model Type XK-550B Bush Type Bearing
Highlight

Two Roll Rubber Mill

,

Rubber Mill Machine

,

Mill Rubber Machine
Leave a Message
Product Description
High Quality Open Rubber Mixing Mill XK-550B Two Roll Mill Rubber Mixing Machine

Equipment application and operation requirements
1. Main application: mixing mill is mainly used for rubber compound warming, mixing &sheeting, as well as raw rubber plasticating, mixing &sheeting.
2. Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Power supply: AC380V, 50Hz, 3-phase
C. Cooling water pressure: 2-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
Type
XK-400
XK-450
XK-560
XK-550B
XK-660
Working diameter of rolls (mm)
400
 450 560/510 550 660
Working Length of rolls (mm)
 1000 1200 1530 1500 2130
Front roll surface speed (m/min)
 18.65 24.26 27.72 27.94 28.6
Friction ratio
1:1.27
 1:1.27 1:1.2 1:1.22 1:1.24
Max. nip (mm)
 10 15 15 15 15
Capacity per batch (kg)
 18-35 25-50 35-50 50-60 165
Motor power (KW)
 37 55 90 110 245
Size (L*W*H) (mm)
4350*1850*1785
5200*2380*1840
5845*2284*1978
5878*2475*2045
7455*3662*2080

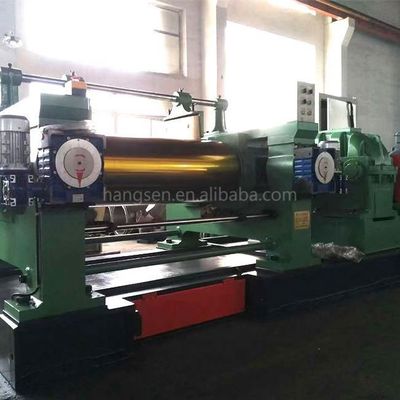

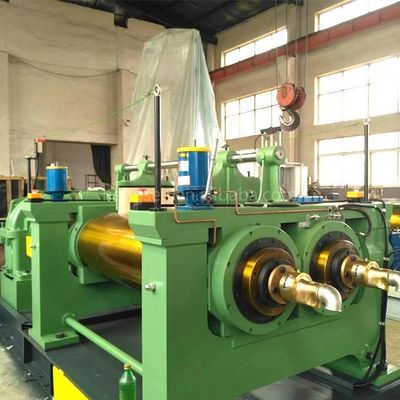

Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B 0

Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B 1
Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B 2


Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B 3


Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B 4
Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B 5

QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.

Dia 550mm Two Roll Rubber Mill Machine 3 Phase AC380V XK-550B 6

FAQ

I: Why choose us?

l.More than 30 years history of SHENGHUALONG factory.

6-8 years foreign sales experience staff, more efficiency and professional. Engineers oversea service more than 30 countries.

2.ISO: 9001, CE, BV certification approval.

3.Service timely, promise to give solution within 12 hours, guarantee customer trouble free.

4.Short delivery date, no delay. Accept urgent order for prompt shipment.

Q2: What about delivery date?

It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, no delay.

Accept urgent order for prompt shipment.

Q3: What's the warranty statement?

We warrants all the products manufactured by us to free from defects in material and workmanship. Under normal use of a period of 12 months or 36 months after the date of the original purchase.

And we have after warranty service: video technical support, online support, spare parts will be offered to you.

Q4: What about oversea service ?

We will arrange oversea setting up and training works if customer need. Customer should pay for accommodation, tickets and salary.
