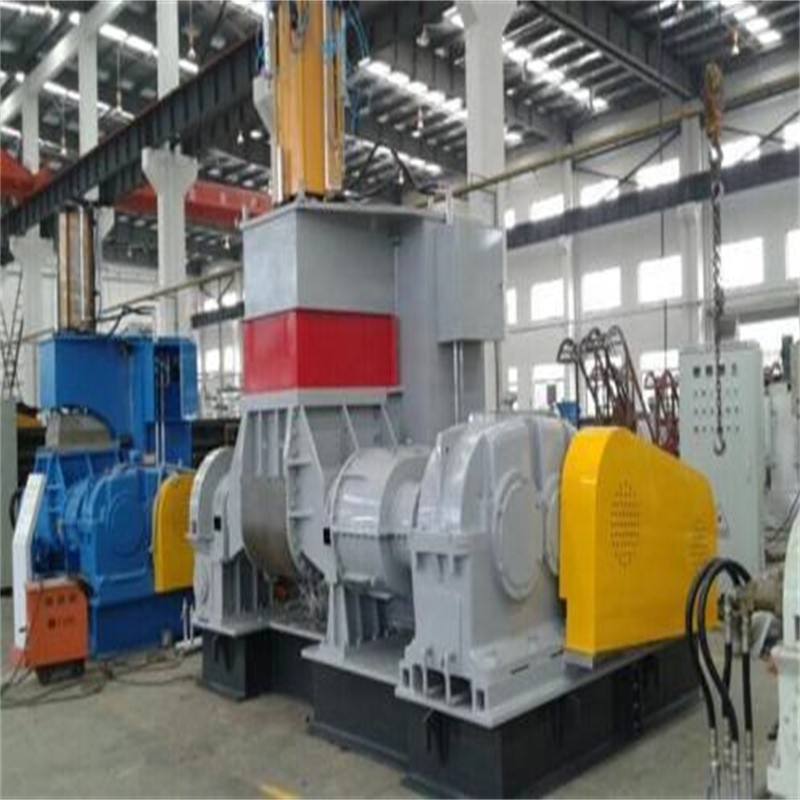

X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader

  • X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader
  • X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader
  • X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader
  • X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader
  • X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader
  • X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader
Place of Origin Shandong, China
Brand Name HUALONG
Certification CE,ISO
Model Number X(S)N-55x30
Minimum Order Quantity 1 set
Price $22,000.00
Packaging Details standard packing
Delivery Time 40 days
Supply Ability 50 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Mixing Capacity(L) 55L
Warranty Of Core Components 1 Years Core Components PLC, Motor, Gear
Compressed Air Pressure(MPa) 0.8 MPa Feeding Mode Front
Voltage Customized Warranty 1 Years
Key Selling Points High Productivity Machine Type Rubber Kneader Machine
Highlight

PLC Rubber Kneader Mixer

,

55L Rubber Process Machine

,

0.8MPa Rubber Kneader Mixer
Leave a Message
Product Description
Rubber Kneader Machine Rubber Mixer


1. With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellentstable quality.

2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.

3. Surface where is contacted with the materials are all platedwith hard chromium and polished, which is corrosion-resistantand wear-resistant.

4. Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.

5. Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the front rotors to discharge and is easy for changingpigments and cleaning the chamber.

6. Programmable logic controller(PLC) is adopted in theelectric-control system, which has reliable control function andalarm function, and interlock safety-protection function and itis provided with serial interface of net.

The series of rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs. Below is the main technical parameters of the models:

X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader 0

Model

X(S)N-

10X32

X(S)N-

20X32

X(S)N-

35X30

X(S)N-

55X30

X(S)N-

75X30

X(S)N-

110x30

X(S)N-

150x30

Total volume of

mixing chamber(L)

 25 45 75 125 180 250 325

Working volume

of mixing chamber(L)

 10 20 35 55 75 110 150

Driving motor

power(kw)

 15 30 55 75 110 185 220

Tilting motor

power(kw)

 1.1 1.5 2.2 2.2 4 4 5.5
Tilting angle 140° 140° 140° 140° 140° 140° 140°

Rotational speed

of the rotor

(front/rear)(r/m)

32/23.5



32/25



30/24.5



30/24.5



30/24.5



30/24.5



30/24.5

Pressure of

compressed air(MPA)

0.5-0.8

 0.5-0.8 0.5-0.8 0.6-0.8 0.6-08 0.6-0.8 0.6-0.8

Capacity of

compressed air(m³/min)

 ≥0.5 ≥0.7 ≥0.9 ≥1.0 ≥1.0 ≥1.5 ≥2.0

Pressure of

cooling water(MPA)

0.2-0.4



 0.2-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4

Pressure of

heating steam

(plastic mixing)(MPA)

 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8

Overall

dimension(MM)

2580X1300

X2280

2630X1520

X2550

3200X1900

X2950

3280X1930

X3070

3330X2620

X3340

3930X3000

X3660

4200X3300

X3900
Weight(KG) 3300 4500 6500 7800 10500 14500 19500



X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader 1
X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader 2


X（S)N55 Rubber Kneader Rubber Mixer Rubber Process Machine Mixing Kneader 3
QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
