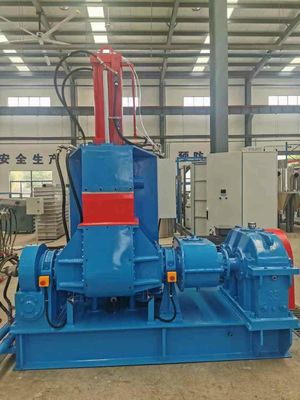

75L 55KW Rubber Kneader Machine Internal Mixer For Rubber

  • 75L 55KW Rubber Kneader Machine Internal Mixer For Rubber
  • 75L 55KW Rubber Kneader Machine Internal Mixer For Rubber
  • 75L 55KW Rubber Kneader Machine Internal Mixer For Rubber
  • 75L 55KW Rubber Kneader Machine Internal Mixer For Rubber
  • 75L 55KW Rubber Kneader Machine Internal Mixer For Rubber
  • 75L 55KW Rubber Kneader Machine Internal Mixer For Rubber
  • 75L 55KW Rubber Kneader Machine Internal Mixer For Rubber
Place of Origin Shandong, China
Brand Name HUALONG
Certification ISO CE
Model Number X(S)N-75x30
Minimum Order Quantity 1 set
Price $20,000.00
Packaging Details standard packing
Delivery Time 40 days
Supply Ability 50 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Components PLC, Motor, Gear Feeding Mode Front
Voltage Customized Year 2021
Warranty 1 Years Key Selling Points High Productivity
Applicable Industries Farms, Rubber Machine Machine Type Rubber Kneader Machine
After Warranty Service Video Technical Support, Online Support, Spare Parts, Motor Type Hard Alloy Welding
Highlight

75L 55KW Rubber Kneader

,

55KW Rubber Kneader Machine

,

75L Internal Mixer For Rubber
Leave a Message
Product Description
Factory Wholesale High Precision Rubber Plastic Dispersion Kneader Machine

Advantages:



1.Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.



2.Super sealing,no powder leakages.

Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.


3.No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.

4.Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.

5.Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.



6.Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.

75L 55KW Rubber Kneader Machine Internal Mixer For Rubber 0

75L 55KW Rubber Kneader Machine Internal Mixer For Rubber 1



Model

X(S)N-

10X32

X(S)N-

20X32

X(S)N-

35X30

X(S)N-

55X30

X(S)N-

75X30

X(S)N-

110x30

X(S)N-

150x30

Total volume of

mixing chamber

 25L 45L 75L 125L 180L 250L 325L

Working volume

of mixing chamber

 10L 20L 35L 55L 75L 110L 150L

Driving motor

power

 15KW 30KW 55KW 75KW 110KW 185KW 220KW

Tilting motor

power

 1.1KW 1.5KW 2.2KW 2.2KW 4KW 4KW 5.5KW
       Tilting angle 140° 140° 140° 140° 140° 140° 140°

Rotational speed

of the rotor

(front/rear)

32/23.5

r/min

32/25

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

Pressure of

compressed air

0.5-0.8

MPa

 0.5-0.8MPa 0.5-0.8MPa 0.6-0.8MPa 0.6-08MPa 0.6-0.8MPa 0.6-0.8MPa

Capacity of

compressed air

 ≥0.5m³/min ≥0.7m³/min ≥0.9m³/min ≥1.0m³/min ≥1.0m³/min ≥1.5m³/min ≥2.0m³/min

Pressure of

cooling water

0.2-0.4

MPa

 0.2-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa

Pressure of

heating steam

(plastic mixing)

 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa

Overall

dimension

2580X1300

X2280mm

2630X1520

X2550mm

3200X1900

X2950mm

3280X1930

X3070mm

3330X2620

X3340mm

3930X3000

X3660mm

4200X3300

X3900mm

75L 55KW Rubber Kneader Machine Internal Mixer For Rubber 2
Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min

75L 55KW Rubber Kneader Machine Internal Mixer For Rubber 3
QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
