110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle

  • 110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle
  • 110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle
  • 110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle
  • 110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle
  • 110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle
  • 110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle
  • 110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle
Place of Origin Shandong, China
Brand Name HUALONG
Certification ISO,CE
Model Number X(S)N-75x30
Minimum Order Quantity 1 set
Price $45,000.00/sets
Packaging Details standard packing
Delivery Time 30 days
Supply Ability 50 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mixing Capacity(L) 75 L Video Outgoing-inspection Provided
Machinery Test Report Provided Core Components PLC, Motor, Gear
Tilting Angle(°) 45 Power (kW) 110 KW
Compressed Air Pressure(MPa) 0.8 MPa Feeding Mode Front
Warranty 1 Years Machine Type Rubber Kneader Machine
Highlight

110 KW Kneader Machine

,

110KW Kneader Machine For Rubber Mixing

,

Kneader Machine For Rubber Mixing
Leave a Message
Product Description

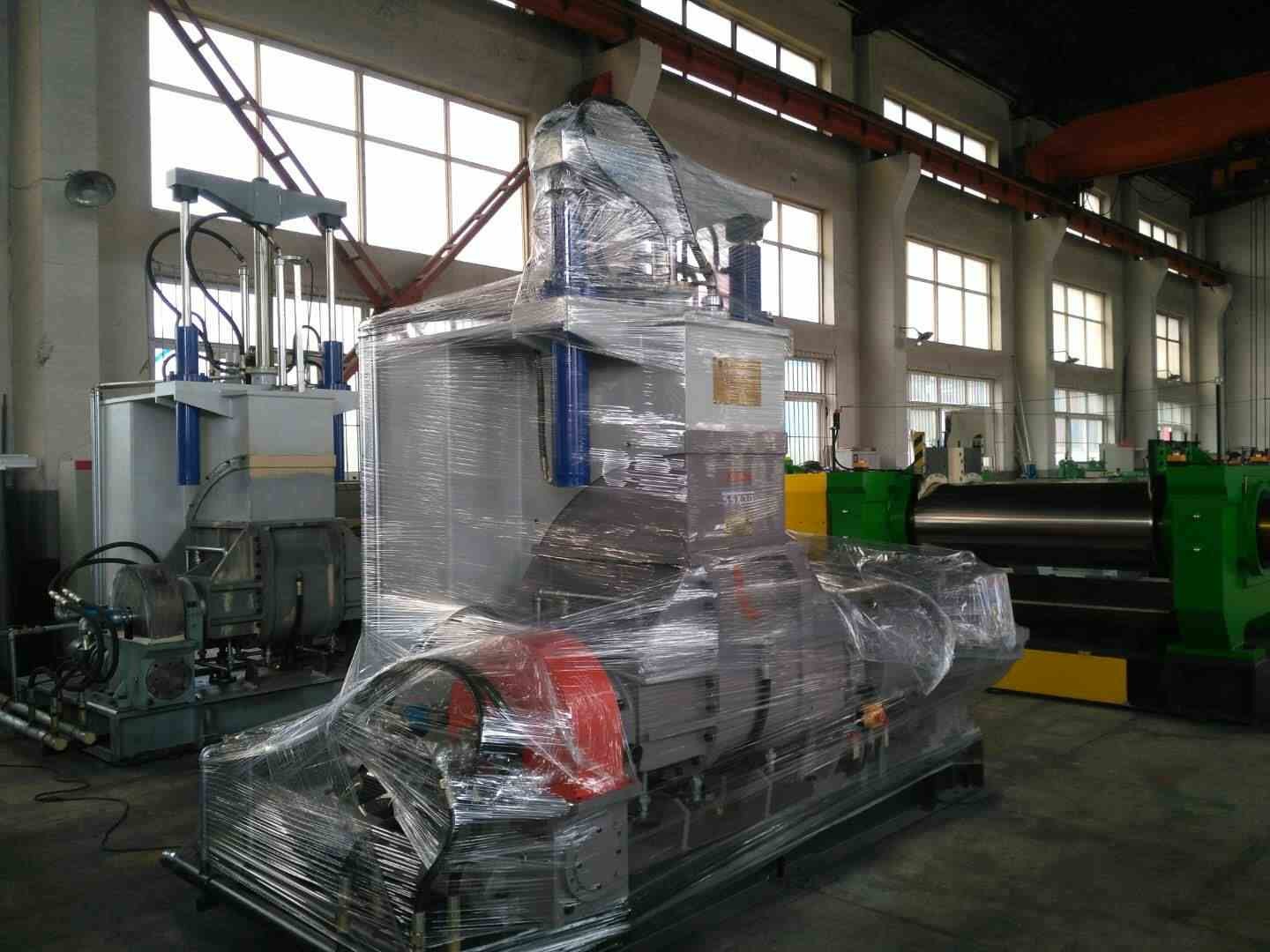

Rubber Kneader With Double Hydraulic Pressure Lid
110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 0
110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 1
110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 2
Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
Model X(S)N -3x32 X(S)N -10x32 X(S)N -20x32 X(S)N -35x30 X(S)N -55x30 X(S)N -75x30 X(S)N -1 10x30

X(S)N

-1 50 x 30

X(S)N

-200 x 30

L volume of mixing chamber

Total volume of mixing chamber

 8 25 45 75 125 180 250 325 440
L Working volume of mixing chamber 3 10 20 35 55 75 110 150 200
kw Main motor power AC5.5 AC15 AC37 AC55 AC75 AC110 AC185 AC220 AC280
r/ min Rotational speed ofrolorffronl/ rear) 32/25.8 32/25 32/27 30/24.5 30/24.5 30/24.5 30/24.5 30/24.5 30/24.5

Tilting angle degree

 135 140 140 140 140 140 140 140 140
kw Tilting motor power 0.55 1.1 1.5 2.2 3 4 7.5 11 11/15
Mpa Pressure of compressed air 0.5-0.8 0.5- 0.8 0.6- 0.8 0.5-0.8 0.6 - 0.8 0.6-0.8 0.6- 0.8 0.6-0.8 0.6-0.8
Mpa Pressure of cooling water 0.2 - 0.4 0.2- 0.4 0.2-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4
Mpa Heating steam pressure {plastics minng I 0.5-0.8 0.5- 0.8 0.5- 0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8
mm Overall dimensions 1660 x960X1750 2580 x 1300X2280 2630x1520 X2550 3200 x 1 900X2950 3280 x 1930X3070 3330x2200 X3340 3930x2800 x3660 4200x3300 X3900 4520x3400 X4215

Weight mt

Approx. Weight

 ~2 -3.3 ~4 ~6.3 -7.5 -10.3 ~15 -19.5 -22.5
110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 3110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 4110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 5110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 6
110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 7

110 KW Kneader Machine For Rubber Mixing 45 Degree Tilting Angle 8

QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
