Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue

  • Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue
  • Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue
  • Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue
  • Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue
  • Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue
  • Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue
  • Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue
Place of Origin Shandong, China
Brand Name HUALONG
Certification ISO,CE
Model Number X(S)N55 X(S)N75 X(S)N110
Minimum Order Quantity 1 set
Price $20,000.00
Packaging Details standard packing
Delivery Time 40 days
Supply Ability 50 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mixing Capacity(L) 110 L Video Outgoing-inspection Provided
Machinery Test Report Provided Warranty Of Core Components 1 Years
Core Components PLC, Motor, Gear Feeding Mode Front
Year 2021 Warranty 1 Years
Motor Type Hard Alloy Welding Machine Color Blue/ Green/ As Your Requested
Highlight

Rubber Butyl Line Mixer Banbury

,

10L 15KW Mixer Banbury

,

Banbury Mixing Machine 10L
Leave a Message
Product Description
Rubber Kneader Machine For Rubber Buty1 Line

1. With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellentstable quality.

2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.

3. Surface where is contacted with the materials are all platedwith hard chromium and polished, which is corrosion-resistantand wear-resistant.

4. Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.

5. Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the front rotors to discharge and is easy for changingpigments and cleaning the chamber.

6. Programmable logic controller(PLC) is adopted in theelectric-control system, which has reliable control function andalarm function, and interlock safety-protection function and itis provided with serial interface of net.

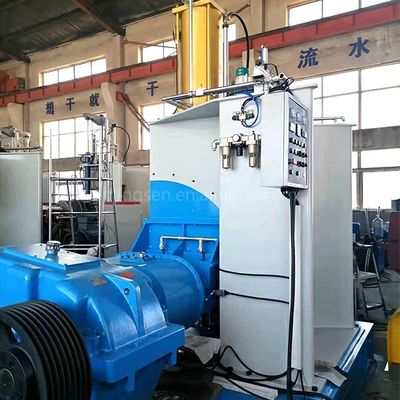

Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue 0

Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
Model

X(S)N-

10X32

X(S)N-

20X32

X(S)N-

35X30

X(S)N-

55X30

X(S)N-

75X30

X(S)N-

110x30

X(S)N-

150x30

Total volume of

mixing chamber

 25L 45L 75L 125L 180L 250L 325L

Working volume

of mixing chamber

 10L 20L 35L 55L 75L 110L 150L

Driving motor

power

 15KW 30KW 55KW 75KW 110KW 185KW 220KW

Tilting motor

power

 1.1KW 1.5KW 2.2KW 2.2KW 4KW 4KW 5.5KW
Tilting angle 140° 140° 140° 140° 140° 140° 140°

Rotational speed

of the rotor

(front/rear)

32/23.5

r/min

32/25

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

30/24.5

r/min

Pressure of

compressed air

0.5-0.8

MPa

 0.5-0.8MPa 0.5-0.8MPa 0.6-0.8MPa 0.6-08MPa 0.6-0.8MPa 0.6-0.8MPa

Capacity of

compressed air

 ≥0.5m³/min ≥0.7m³/min ≥0.9m³/min ≥1.0m³/min ≥1.0m³/min ≥1.5m³/min ≥2.0m³/min

Pressure of

cooling water

0.2-0.4

MPa

 0.2-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa 0.3-0.4MPa

Pressure of

heating steam

(plastic mixing)

 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa 0.5-0.8Mpa

Overall

dimension

2580X1300

X2280mm

2630X1520

X2550mm

3200X1900

X2950mm

3280X1930

X3070mm

3330X2620

X3340mm

3930X3000

X3660mm

4200X3300

X3900mm
Weight 3300Kg 4500Kg 6500Kg 7800Kg 10500Kg 14500Kg 19500Kg

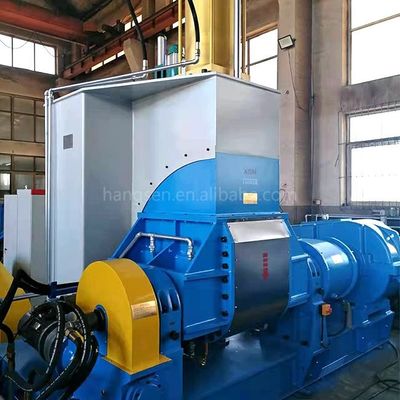

Rubber Butyl Line Mixer Banbury Mixing Machine 10L 15KW Blue 1
QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
