2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine

  • 2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine
  • 2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine
  • 2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine
  • 2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine
  • 2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine
Place of Origin Shandong, China
Brand Name HUALONG
Certification CE ISO
Model Number XK-560
Minimum Order Quantity 1
Price $47000/sets
Packaging Details standard packing
Delivery Time 30 days
Supply Ability 10 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter Of Roll(mm) 560 Mm Rotation Speed Of Front Roll(rpm) 27.72 Rpm
Length Of Roll(mm) 1530 Mm Roll Ratio(Front/Back) 1:1.2
Cooling Mode Water Cooling Dimension(L*W*H) 5200*2380*1840mm
Machine Type Rubber Mixing Mill Machine Model Type XK-560
Bush Type Bearing Gearbox Hard Gear Reducer
Highlight

2 Open Roll Mixing Mill Machine

,

XK560 Synthetic Rubber Process Machine

,

Mixing Mill Machine XK560
Leave a Message
Product Description

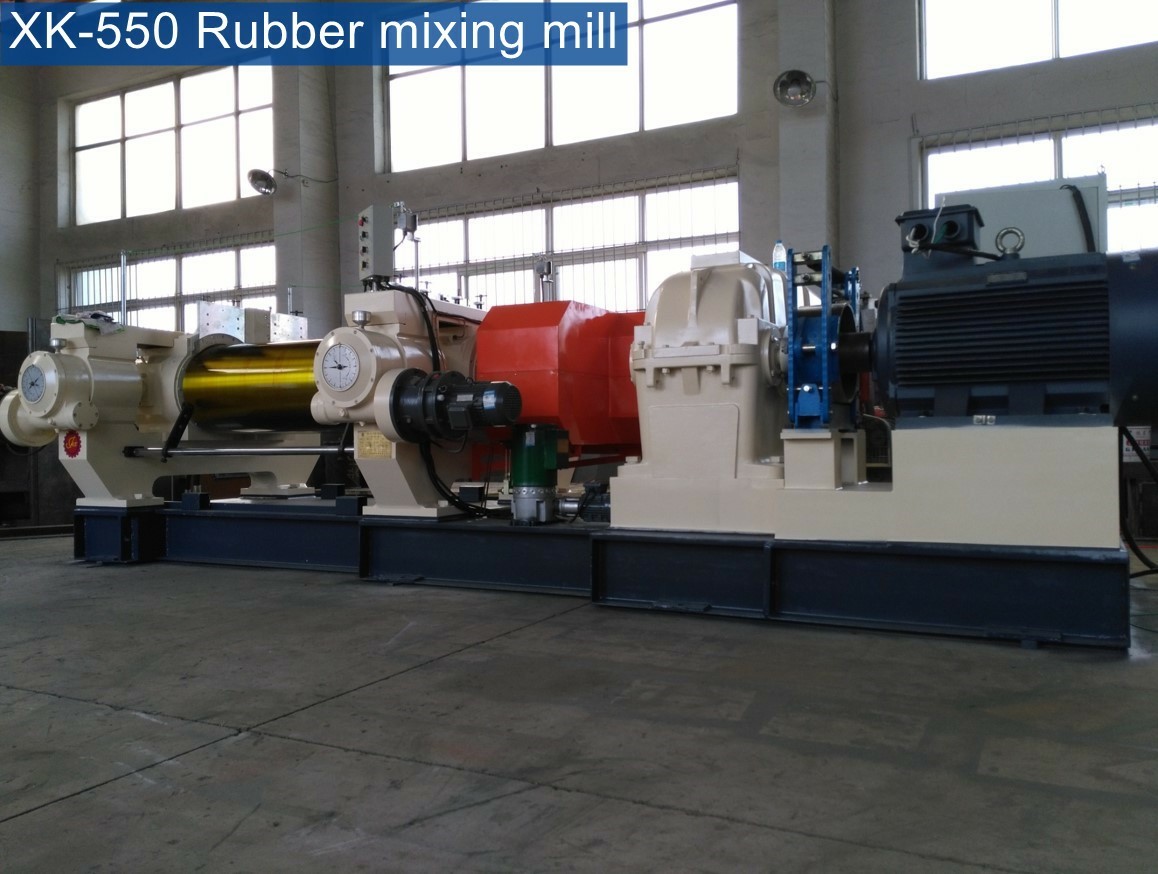

XK-560 rubber mixing mill ,Two open Roll Mixing Mill Machine

2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine 0


rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.

2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine 1



1.The roller materials are choromium-molybdenum,centrifugally cast,hardness of chilled on the surface is 75HS.

   roller type : hollow smooth roller ,drilled smooth roll ,hollow grooved roll

2.Bearing type :auto aligning bearing

   Brand:FAG

3.Reducer:high strength and low carbon alloy steel quenching tooth surface.

4.adjustment device : Manual type , motorized type ,hydraulic type

5.Stock guide : fixed type,manually moving type,turn over and hydraulic moving type

6.Safety device :Mechnical safety protection device ,IR sensor type device

7.Emergeny stop device : Emergency stop button ,trip ban rope ,foot switch ,grating and riding blanket

8.Gearbox : Hardened teeth single shaft gearbox, hardened teeth double shaft gearbox

9.Motor : DC motor or AC motor

Type
XK-400
XK-450
XK-560
XK-550B
XK-660
Working diameter of rolls (mm)
400
450
560/510
550
660
Working Length of rolls (mm)
1000
1200
1530
1500
2130
Front roll surface speed (m/min)
18.65
24.26
27.72
27.94
28.6
Friction ratio
1:1.27
1:1.27
1:1.2
1:1.22
1:1.24
Max. nip (mm)
10
15
15
15
15
Capacity per batch (kg)
18-35
25-50
35-50
50-60
165
Motor power (KW)
37
55
90
110
245
Size (L*W*H) (mm)
4350*1850*1785
5200*2380*1840
5845*2284*1978
5878*2475*2045
7455*3662*2080
Advantage :

Acoording to other supplier,we have advantage as follows:

1)we have our own fire retreading klin,.so all

foundation and bracket after fire retreading,also we have our own unpopular

milling machine,one-time finishing,that will not deformation for ever.

for other factory,they don't have this.as we know,in qingdao city,only our factory have this.

2)we use best brand spare parts,for example,bearing,reducer and motor,

we use 8 sets bearing,as we know,other supplier only use 4 sets.

3)our technical people and worker has very good experience.who worked for many years.

2 Open Roll Mixing Mill Machine XK560 Synthetic Rubber Process Machine 2

QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
