20-120 Mesh Tyre Granulator Machine 1000kg/H Recycling Tire Equipment
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Components | PLC, Engine, Motor, Gear | Tire Machine Type | Tire Recycling Machine |
|---|---|---|---|
| Dimension(L*W*H) | 6430*2600*3120mm | Warranty | 1 Year |
| Power (kW) | 55kw*2 | Automatic Grade | Fully Automatic |
| Production Capacity | 1000-3000kg/h | Raw Material Size | Rubber And Tyre Diameter 1200mm |
| Final Product | Rubber Powder | Power Size | 30-120mesh |
| Highlight | 120 Mesh Tyre Granulator Machine,20 Mesh Tyre Granulator Machine,1000kg/H Recycling Tire Equipment |
||
Product Description

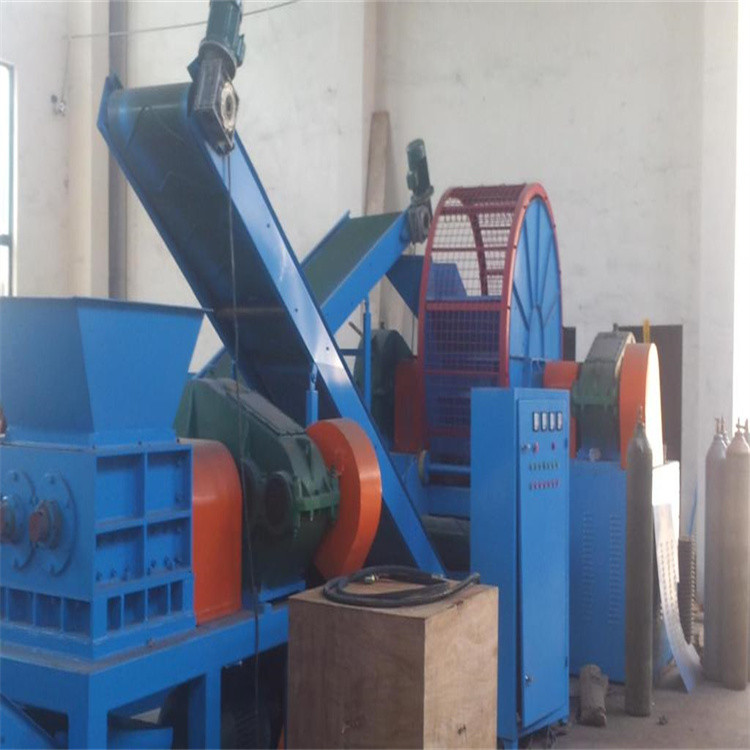

Waste Tyre Recycling Tyre Recycling Machine Recycling Tyres Granular Rubber Powder Mixer
Features
1) Iron/steel removing ratio>99.5%, fiber removing ratio>98%.
2) Adopt automatic control system for whole line, reduce labor cost.
3) No sewage and waste gas discharge, environment protection.
4) Available capacity range of our tyre recycling lines at present: 400~3000kg/h.
5) Available finial rubber powder size: 20~120mesh.
Tire wire draw machine
| Model | 1200Y |
| Motor Power (kw) | 16 |
| Overall Dimensions (L×W×H) | 6200×900×1700 |
| Weight (T) | 3 |
| Capacity (tires/h) | 60-80 |
Tire Cutter
Specifications
1) Overall size(L×W×H): 2080×1000×2130mm
2) Qty. of cutter: 4pieces
3)Cutter stroke: nearly 600mm
4) Cylinder pressure: nearly 12T
5) Working oil pressure: 6.3Mpa
6) Oil pump: Flow 40 L/mi, pressure 6.3Mpa
7) Working oil grade: No. 32 mechanical oil
8) Motor model: Y132M2-6, power: 7.5---11kW
Tire Shredder
RUBBER SHREDDER BLADE
All tools are CNC machined,25X50 is the effective length of the box,This bearing seat is cast steel or forged, rough machining is completed on welding, machining in a single box, and then the entire box is assembled for the final finishing product.
| Type | 1200 |
| Quantity of cutter head | 24 |
| Dimension of cutter head | 560*60 |
| Size of charge-in(mm) | ≤1200 |
| Size of charge-out(mm) | 50-60 |
| Handling Capacity (t/h) | 2-3 |
| Motor Power (kw) | 45*2 |
| Dimension(m) | 6×2.8×3.7 |
| Weight (T) | 16 |
RUBBER CRUSHER
|
Type
Technical parameter |
XKP-560 |
| Front roll diameter(mm) | 560(groove roller) |
| Rear roll diameter(mm) | 510(groove roller) |
| Working length of rolls(mm) | 800 |
| Front roll surface speed(m/min) | 32 |
| Friction ratio | 1:1.30 |
| Max. nip (mm) | 15 |
| Motor power | 132 |
| Overall dimension: L×W×H(mm) | 5064×2284×1978 |
| Cast steel roller, Hard cylindrical gear, Bearing | |
| NAME | |
| Vibrating screen (big) | Conveyor belt (magnetic separation) (big) |
| Vibrating screen (small) | Conveyor belt (magnetic separation) (small) |
| Main conveyor belt (big) | |
| Parameter | 1100×8 |
| Impeller number | 8 |
| Impeller diameter | F1100mm |
| Speed of main shaft | 377(or 464)/min |
| Power | 5.5kw |
| Speed of feeder | 29/min |
| Feeder power | 0.4kw |
| Overall dimension | F1600xH3400(mm) |
FAQ
I: Why choose us?
l.More than 30 years history of SHENGHUALONG factory.
6-8 years foreign sales experience staff, more efficiency and professional. Engineers oversea service more than 30 countries.
2.ISO: 9001, CE, BV certification approval.
3.Service timely, promise to give solution within 12 hours, guarantee customer trouble free.
4.Short delivery date, no delay. Accept urgent order for prompt shipment.
Q2: What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, no delay.
Accept urgent order for prompt shipment.
Q3: What's the warranty statement?
We warrants all the products manufactured by us to free from defects in material and workmanship. Under normal use of a period of 12 months or 36 months after the date of the original purchase.
And we have after warranty service: video technical support, online support, spare parts will be offered to you.
Q4: What about oversea service ?
We will arrange oversea setting up and training works if customer need. Customer should pay for accommodation, tickets and salary.
