55kw Waste Tire Shredder Rubber Powder Production Line XKP560
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 415V,50HZ,as Customizied,as Per Requirement | Condition | New |
|---|---|---|---|
| Warranty | One Year | After Sales Service | Engineers Availble To Service Machinery Overseas |
| Automatic | Full Automatic | Motor | 55kw*2 |
| Reducer | Hardend Reducer | Usage | Used Tire Recycling |
| Highlight | 55kw Waste Tire Shredder,55kw Rubber Powder Production Line,XKP560 Rubber Powder Production Line |
||
Product Description
Rubber Shredder Machine XKP-560 Rubber Powder Line Waste Tire Recycling Line
Rubber powder production line Instruction
Working flow:
Waste tire---Wire drawing machine---tire cutter--Rubber shredder--- Steel wire separating machine---magnetic separating ---Rubber powder
--fiber seperator.
1. Steel wire drawing machine--extract the thick steel wire.
2.tire cutter--cut the big tires into three parts
3. Conveyor-Transport the tire to the shredder.
4. Twin-shaft shredder--Shears the tire into 5- 10cm blocks;
5. Recirculation system--To control the size of shreds going to the rapers;
6. Raspers-Reduce the shreds into 15. 20mm chips and liberates steel from the rubber;
7. Over belt magnet--Separation of liberated steel from the rubber chips;
8. Vibratory feeder--Transports the rubber chips;
9. Rubber granulator machine--Size reduction of the chips to 1-4mm granules and liberates the textile fraction to air flow separation.
10. Grinder machine --Grinder rubber powder.
11.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.

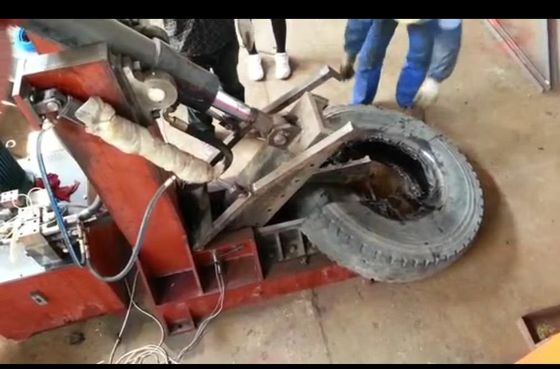

1.wire drawing machine
Hard alloy is welded on the cutting blade to make it rigid and wearable.
The machine is equipped with safety shelves to effectively prevent unsafe issues from occurring in the process of tire bead peeling off The motor, the speed reducer and the main frame are all compactly structured together as one body.The base of the machine is a complete cast framework,which is convenient for installation.
APPLICATION:
The machine is applicable for taking off steel rings from tire beads.
Technical data
| Model | 1200Y |
| Motor Power (kw) | 7.5 |
| Overall Dimensions (L×W×H) | 4700×900×1700 |
| Weight (T) | 2.8 |
| Capacity (tires/h) | 80-100 |
2.QDJ-1200 Tyre Cutting Machine
Specifications
1.1 Overall size(L×W×H): 2080×1000×2130mm
1.2 Qty. of cutter: 4pieces
1.3 Cutter stroke: nearly 600mm
1.4 Cylinder pressure: nearly 12T
1.5 Working oil pressure: 6.3Mpa
1.6 Oil pump: Flow 40 L/mi, pressure 6.3Mpa
1.7 Working oil grade: No. 32 mechanical oil
1.8 Motor model: Y132M2-6, power: 7.5---11kW

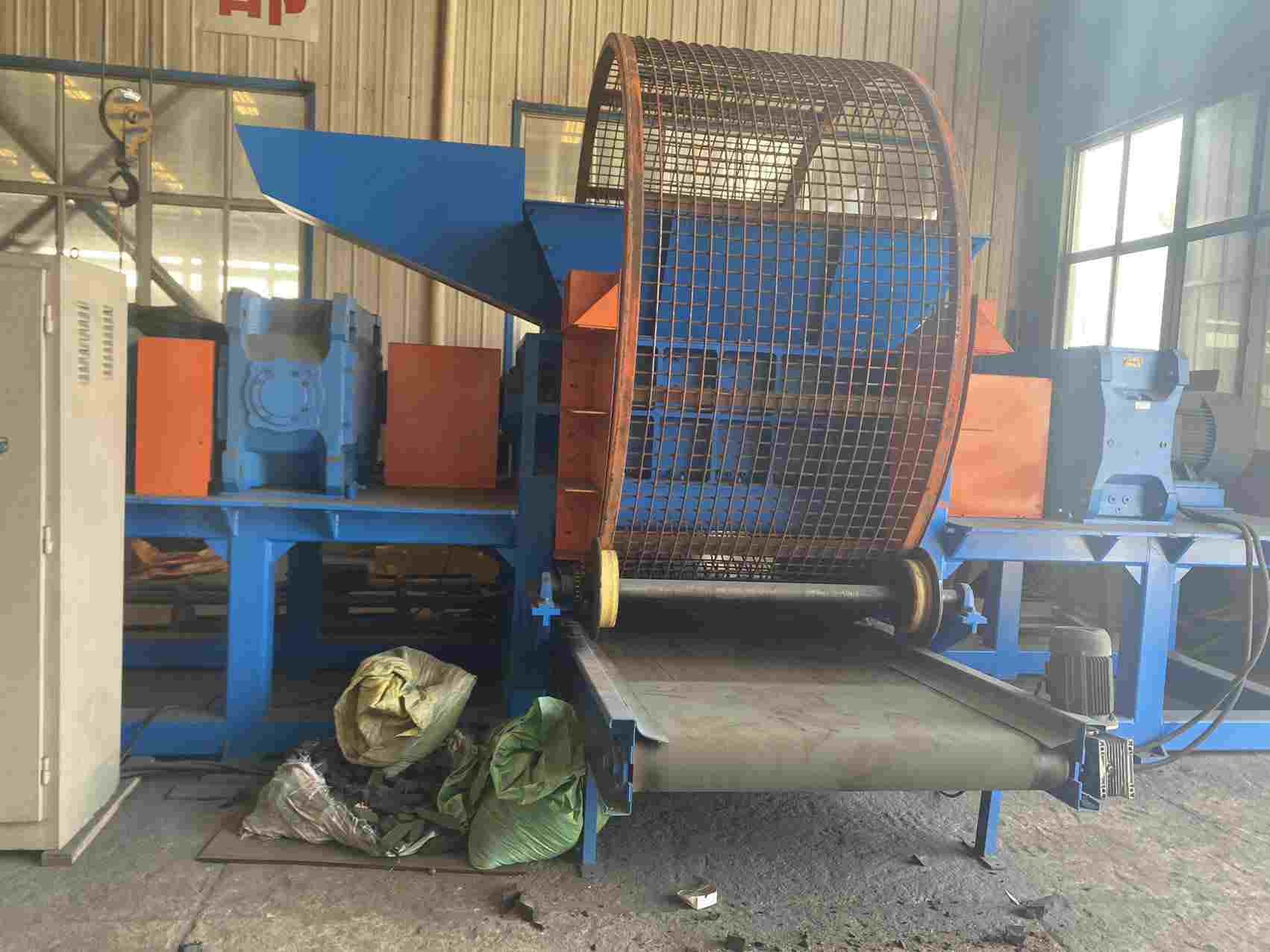

3.rubber shredder machine
Characteristic
This machine has the compact structure,advanced technology,low power consumption,high efficiency,crushing room with off structure ,easy to maintenance,etc.The machine,adopting excellent hard alloy steel as it blade,high hard and wearable,is druable;Circle mesh screen has gridding structure,dropping pieces with large area,is good for rubber pieces.
| Type | LP-1200 |
| Quantity of cutter head | 20 |
| Dimension of cutter head (diameter*thickness)mm | 560*60 |
| Size of charge-in(mm) | 1200 |
| Size of charge-out(mm) | 50-60 |
| Handling Capacity (t/h) | 3000 |
| Motor Power (kw) | 60*2 |
| Dimension(m) | 6×2.8×3.7 |
| Weight (T) | 16 |
4 .Rubber Crusher: This is waste tire recycling main machine
| Type | XKP-560 |
| Front roll diameter (mm) | 510 |
| Rear roll diameter (mm) | 560 Groove roller |
| Working length of rolls (mm) | 800 |
| Front roll surface speed (m/min) | 25.56 |
| Friction ratio | 1:1.30 |
| Max. nip (mm) | 15 |
| Motor power (KW) | 110 |
| Size (L*W*H) (mm) | 5064*2284*1978 |
5. Rubber Granulator Production Line
6.fiber seperator
Main technical specifications
1). Impeller: The diameter of the fan blade is φ1100 mm, and the number is 8 pieces.
2). Wheel shell size: the equipment body part is φ1600 mm, and the total height of the equipment is about 3400 mm.
3). Spindle speed: 377 (and 464) rpm.
4). Main motor: JQ2-52-6 5.5kw 760rpm.
5). Feeder revolutions: 29 revolutions per minute.
6). Feeder motor: JW092—4 0.4 kW 1370 rpm
| Products name | power(kw) | Quantity (sets) |
Total power (kw)
|
| Tire wire draw machine | 7.5 | 1 | 7.5 |
| Tire cutter | 11 | 1 | 11 |
| Tire shredder with conveying device | 115.2 | 1 | 115.2 |
| XKP-610 rubber crusher | 160 | 1 | 160 |
| Auxiliary equipment | 16.5 | 1 | 16.5 |
| Fiber seperator | 10 | 1 | 10 |
| Total | 310.2 | 310.2 |
FAQ
I: Why choose us?
l.More than 30 years history of SHENGHUALONG factory.
6-8 years foreign sales experience staff, more efficiency and professional. Engineers oversea service more than 30 countries.
2.ISO: 9001, CE, BV certification approval.
3.Service timely, promise to give solution within 12 hours, guarantee customer trouble free.
4.Short delivery date, no delay. Accept urgent order for prompt shipment.
Q2: What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, no delay.
Accept urgent order for prompt shipment.
Q3: What's the warranty statement?
We warrants all the products manufactured by us to free from defects in material and workmanship. Under normal use of a period of 12 months or 36 months after the date of the original purchase.
And we have after warranty service: video technical support, online support, spare parts will be offered to you.
Q4: What about oversea service ?
We will arrange oversea setting up and training works if customer need. Customer should pay for accommodation, tickets and salary.
