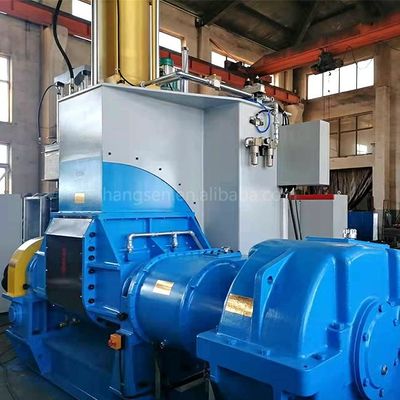

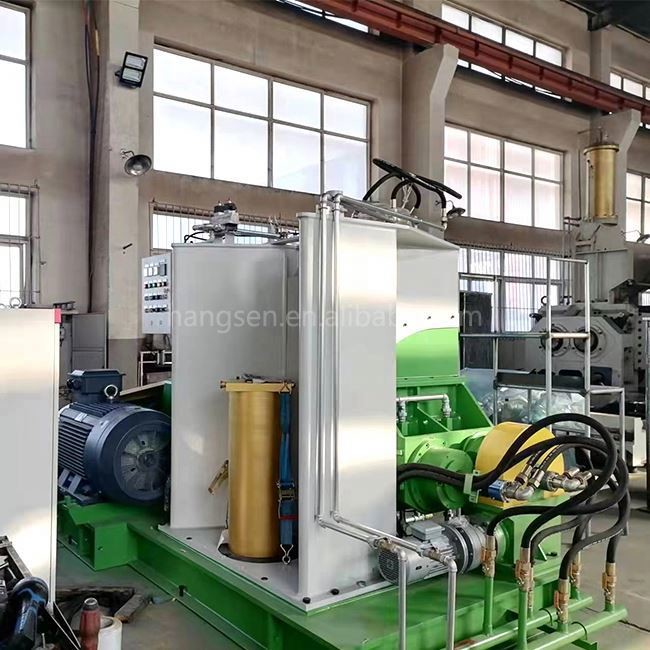

Banbury Internal Mixer Rubber Kneader Machine 25L 45L 125L 180L
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Video Outgoing-inspection | Provided |
|---|---|---|---|
| Machinery Test Report | Provided | Core Components | PLC, Motor, Gear |
| Tilting Angle(°) | 45 | Compressed Air Pressure(MPa) | 0.8 MPa |
| Feeding Mode | Front | Warranty | 1 Years |
| Key Selling Points | High Productivity | Applicable Industries | Farms, Rubber Machine |
| Highlight | Banbury Internal Mixer Rubber Kneader,25L Rubber Kneader Machine,45L Rubber Kneader Machine |
||
Product Description
Factory Price Internal Lab Rubber Productcts Dispersion Rubber Kneader Machine
Brief Introduction:
usable for rubber or plastic plasticzing and mixing or rubber and plastic blending.
Features:
1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled
2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about even distribution of the stock.
3. The rotor wings are built up by welding with the abrasion-proof carbide alloy to resist abrasion and corrosion.
4. Stock is fed through the rear door of the framework (or another port) and discharged by the mixing chamber tilting forward by 140°.
| Model |
X(S)N- 10X32 |
X(S)N- 20X32 |
X(S)N- 35X30 |
X(S)N- 55X30 |
X(S)N- 75X30 |
X(S)N- 110x30 |
X(S)N- 150x30 |
|
Total volume of mixing chamber |
25L | 45L | 75L | 125L | 180L | 250L | 325L |
|
Working volume of mixing chamber |
10L | 20L | 35L | 55L | 75L | 110L | 150L |
|
Driving motor power |
15KW | 30KW | 55KW | 75KW | 110KW | 185KW | 220KW |
|
Tilting motor power |
1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW |
| Tilting angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
|
Rotational speed of the rotor (front/rear) |
32/23.5 r/min |
32/25 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
|
Pressure of compressed air |
0.5-0.8 MPa |
0.5-0.8MPa | 0.5-0.8MPa | 0.6-0.8MPa | 0.6-08MPa | 0.6-0.8MPa | 0.6-0.8MPa |
|
Capacity of compressed air |
≥0.5m³/min | ≥0.7m³/min | ≥0.9m³/min | ≥1.0m³/min | ≥1.0m³/min | ≥1.5m³/min | ≥2.0m³/min |
|
Pressure of cooling water |
0.2-0.4 MPa |
0.2-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa |
|
Pressure of heating steam (plastic mixing) |
0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
|
Overall dimension |
2580X1300 X2280mm |
2630X1520 X2550mm |
3200X1900 X2950mm |
3280X1930 X3070mm |
3330X2620 X3340mm |
3930X3000 X3660mm |
4200X3300 X3900mm |
| Weight | 3300Kg | 4500Kg | 6500Kg | 7800Kg | 10500Kg | 14500Kg | 19500Kg |
FAQ
I: Why choose us?
l.More than 30 years history of SHENGHUALONG factory.
6-8 years foreign sales experience staff, more efficiency and professional. Engineers oversea service more than 30 countries.
2.ISO: 9001, CE, BV certification approval.
3.Service timely, promise to give solution within 12 hours, guarantee customer trouble free.
4.Short delivery date, no delay. Accept urgent order for prompt shipment.
Q2: What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, no delay.
Accept urgent order for prompt shipment.
Q3: What's the warranty statement?
We warrants all the products manufactured by us to free from defects in material and workmanship. Under normal use of a period of 12 months or 36 months after the date of the original purchase.
And we have after warranty service: video technical support, online support, spare parts will be offered to you.
Q4: What about oversea service ?
We will arrange oversea setting up and training works if customer need. Customer should pay for accommodation, tickets and salary.
