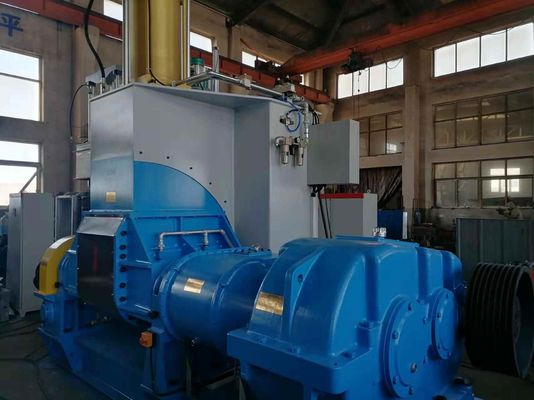

325L Plastic Rubber Dispersion Kneader Machine High Precision
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Components | PLC, Motor, Gear | Feeding Mode | Front |
|---|---|---|---|
| Voltage | Customized | Year | 2021 |
| Warranty | 1 Years | Key Selling Points | High Productivity |
| Applicable Industries | Farms, Rubber Machine | Machine Type | Rubber Kneader Machine |
| After Warranty Service | Video Technical Support, Online Support, Spare Parts, | Motor Type | Hard Alloy Welding |
| Highlight | Plastic Rubber Dispersion Kneader,Rubber Dispersion Kneader Machine,325L Rubber Dispersion Kneader |
||
Product Description
Factory Wholesale High Precision Rubber Plastic Dispersion Kneader Machine
Advantages:
1.Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2.Super sealing,no powder leakages.
Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.
3.No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.
4.Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
5.Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
6.Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.
| Model |
X(S)N- 10X32 |
X(S)N- 20X32 |
X(S)N- 35X30 |
X(S)N- 55X30 |
X(S)N- 75X30 |
X(S)N- 110x30 |
X(S)N- 150x30 |
|
Total volume of mixing chamber |
25L | 45L | 75L | 125L | 180L | 250L | 325L |
|
Working volume of mixing chamber |
10L | 20L | 35L | 55L | 75L | 110L | 150L |
|
Driving motor power |
15KW | 30KW | 55KW | 75KW | 110KW | 185KW | 220KW |
|
Tilting motor power |
1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW |
| Tilting angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
|
Rotational speed of the rotor (front/rear) |
32/23.5 r/min |
32/25 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
|
Pressure of compressed air |
0.5-0.8 MPa |
0.5-0.8MPa | 0.5-0.8MPa | 0.6-0.8MPa | 0.6-08MPa | 0.6-0.8MPa | 0.6-0.8MPa |
|
Capacity of compressed air |
≥0.5m³/min | ≥0.7m³/min | ≥0.9m³/min | ≥1.0m³/min | ≥1.0m³/min | ≥1.5m³/min | ≥2.0m³/min |
|
Pressure of cooling water |
0.2-0.4 MPa |
0.2-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa |
|
Pressure of heating steam (plastic mixing) |
0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
|
Overall dimension |
2580X1300 X2280mm |
2630X1520 X2550mm |
3200X1900 X2950mm |
3280X1930 X3070mm |
3330X2620 X3340mm |
3930X3000 X3660mm |
4200X3300 X3900mm |
Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
