55KW Dispersion Kneader Machine 75L Rubber Mixing Banbury Machine
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Mixing Capacity(L) | 75 L |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Core Components | PLC, Motor, Gear | Year | 2021 |
| Warranty | 1 Years | Key Selling Points | High Productivity |
| Applicable Industries | Farms, Rubber Machine | Motor Type | Hard Alloy Welding |
| Highlight | 55KW Dispersion Kneader Machine,55KW Rubber Mixing Banbury Machine,75L Rubber Mixing Banbury Machine |
||
Product Description

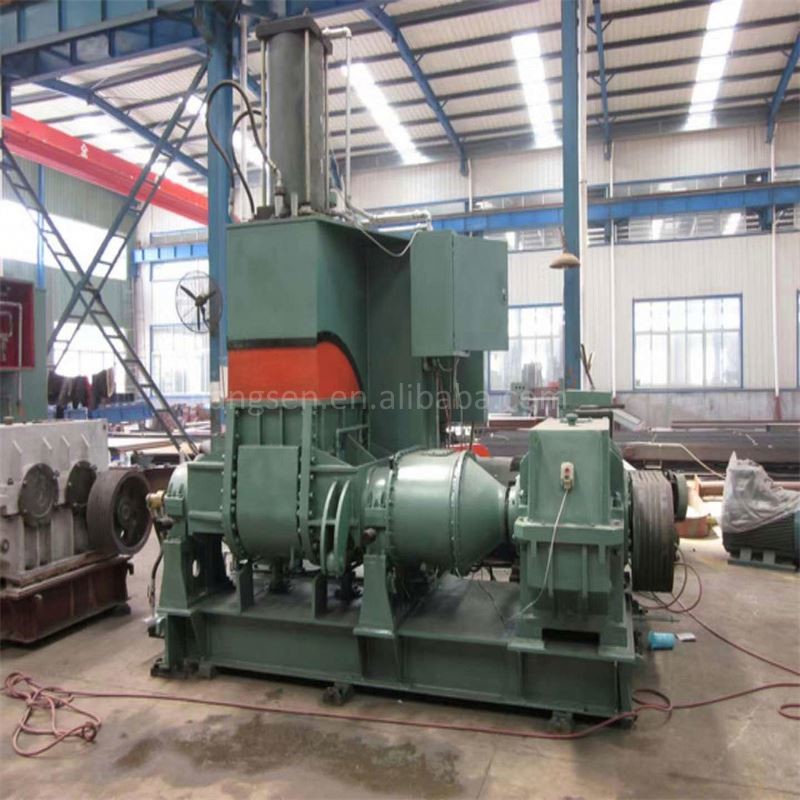

X(S)N-75 rubber dispersion kneader machine Banbury pressed kneader machine
The series of rubber kneader machines are main used for molding and mixing the materials of natural rubber, synthetic rubber, recycled rubber or plastic, or blending rubber and plastic. They are also suitable for mixing a variety of low viscosity materials.
Advantages:
1.Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2.Super sealing,no powder leakages.
Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.
3.No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.
4.Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
5.Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
6.Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.
Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
|
Model
|
X(S)N35
|
X(S)N55
|
X(S)N75
|
X(S)N110
|
|
Total volume of mixing chamber (L)
|
75
|
125
|
180
|
250
|
|
Working volume of mixing chamber (L)
|
35
|
55
|
75
|
110
|
|
Driving motor power (KW)
|
55
|
75
|
110
|
185
|
|
Tilting motor power (KW)
|
5.5
|
5.5
|
5.5
|
7.5
|
|
Tilting angle
|
110
|
110
|
110
|
110
|
|
Rotational speed of the rotor ( front/rear) (r/min)
|
36/30
|
36/30
|
36/30
|
30/24.5
|
|
Pressure of compressed air (Mpa)
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Cooling water pressure (Mpa)
|
0.3-0.4
|
0.3-0.4
|
0.3-0.4
|
0.3-0.4
|
|
Size (L*W*H) (mm)
|
3150*1900*2880
|
3280*2120*3090
|
3280*2220*3250
|
4070*2712*3580
|
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
