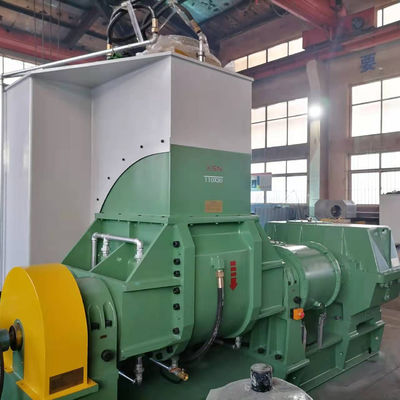

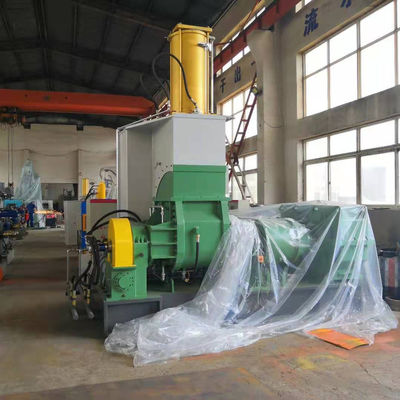

250L 185kW Rubber Kneader Machine Rubber Mixing Equipment
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Mixing Capacity(L) | 250 L |
|---|---|---|---|
| Core Components | PLC, Motor, Gear | Tilting Angle(°) | 45 |
| Power (kW) | 185 KW | Feeding Mode | Front |
| Voltage | Customized | Year | 2023 |
| Warranty | 1 Years | Key Selling Points | High Productivity |
| Production Capacity | 80-100kg Per Batch | Motor Type | Hard Alloy Welding |
| Highlight | 250L 185kW Rubber Kneader,185kW Rubber Kneader Machine,250L Rubber Mixing Equipment |
||
Product Description
Rubber Kneader Machine XN110 Rubber Kneader Machine For Rubber Mixing
Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
Model | X(S)N35 | X(S)N55 | X(S)N75 | X(S)N110 |
Total volume of mixing chamber (L) | 75 | 125 | 180 | 250 |
Working volume of mixing chamber (L) | 35 | 55 | 75 | 110 |
Driving motor power (KW) | 55 | 75 | 110 | 185 |
Tilting motor power (KW) | 5.5 | 5.5 | 5.5 | 7.5 |
Tilting angle | 110 | 110 | 110 | 110 |
Rotational speed of the rotor ( front/rear) (r/min) | 36/30 | 36/30 | 36/30 | 30/24.5 |
Pressure of compressed air (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Cooling water pressure (Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Size (L*W*H) (mm) | 3150*1900*2880 | 3280*2120*3090 | 3280*2220*3250 | 4070*2712*3580 |
FAQ
I: Why choose us?
l.More than 30 years history of SHENGHUALONG factory.
6-8 years foreign sales experience staff, more efficiency and professional. Engineers oversea service more than 30 countries.
2.ISO: 9001, CE, BV certification approval.
3.Service timely, promise to give solution within 12 hours, guarantee customer trouble free.
4.Short delivery date, no delay. Accept urgent order for prompt shipment.
Q2: What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, no delay.
Accept urgent order for prompt shipment.
Q3: What's the warranty statement?
We warrants all the products manufactured by us to free from defects in material and workmanship. Under normal use of a period of 12 months or 36 months after the date of the original purchase.
And we have after warranty service: video technical support, online support, spare parts will be offered to you.
Q4: What about oversea service ?
We will arrange oversea setting up and training works if customer need. Customer should pay for accommodation, tickets and salary.
