35L 55L Rubber Kneader Machine XN35 Dispersion Kneader
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Batch Time(times/hour) | 10 Times/hour | Total Capacity(L) | 55L |
|---|---|---|---|
| Core Components | PLC, Engine, Bearing, Gearbox, Motor | Voltage | Customized, Customized |
| Warranty | 1 Year | Key Selling Points | High Productivity |
| Weight (KG) | 8000 KG | Showroom Location | United States |
| Machine Type | Rubber Kneader Machine | Machine Size | 35L/55L/75L/110L |
| Discharging Way | By Motor | Rotor | Hard Alloy Welding |
| Highlight | 35L 55L Rubber Kneader,55L Rubber Kneader Machine,XN35 Dispersion Kneader |
||
Product Description

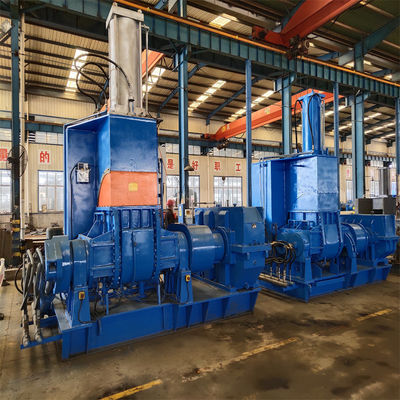

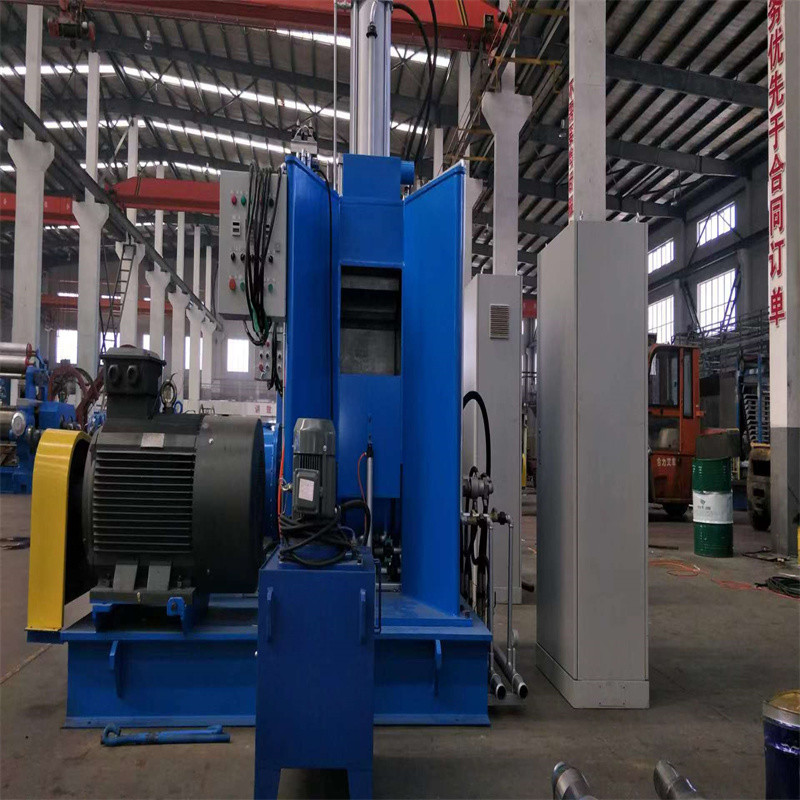

Rubber Mixer Dispersion Kneader Used Rubber Kneader Machine
The main purpose
This machine is mainly used for plasticizing and mixing of polymer or natural rubber, synthetic rubber, recycled rubber and other polymers.
Rotor assembly
The rotor adopts hard alloy welding, fine polishing, annealing heat treatment, making it more durable and longer life.
Kneader mixing chamber and side walls all through anneal heating treatment to secure lifetime no broken and no leaking.
The rotor adopts hard alloy welding, fine polishing, annealing heat treatment, making it more durable and longer life.
Hard alloy welded rotor, finely polishing,chrome plated again
Hard welded mixing chamber,finely polishing, chrome plated
Hard-tooth gear reducer: low carbon alloy steel, quenching treatment, gear grinding process.
Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
|
Model
|
X(S)N35
|
X(S)N55
|
X(S)N75
|
X(S)N110
|
|
Total volume of mixing chamber (L)
|
75
|
125
|
180
|
250
|
|
Working volume of mixing chamber (L)
|
35
|
55
|
75
|
110
|
|
Driving motor power (KW)
|
55
|
75
|
110
|
185
|
|
Tilting motor power (KW)
|
5.5
|
5.5
|
5.5
|
7.5
|
|
Tilting angle
|
110
|
110
|
110
|
110
|
|
Rotational speed of the rotor ( front/rear) (r/min)
|
36/30
|
36/30
|
36/30
|
30/24.5
|
|
Pressure of compressed air (Mpa)
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Cooling water pressure (Mpa)
|
0.3-0.4
|
0.3-0.4
|
0.3-0.4
|
0.3-0.4
|
|
Size (L*W*H) (mm)
|
3150*1900*2880
|
3280*2120*3090
|
3280*2220*3250
|
4070*2712*3580
|
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
