55l 75kw Rubber Kneader Machine Banbury Rubber Mixer Machine
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Video Outgoing-inspection | Provided |
|---|---|---|---|
| Machinery Test Report | Provided | Core Components | PLC, Motor, Gear |
| Power (kW) | 110kW | Compressed Air Pressure(MPa) | 0.8 MPa |
| Warranty | 1 Years | Key Selling Points | High Productivity |
| Motor Type | Hard Alloy Welding | Application | Mixing Rubber |
| Highlight | 55l 75kw Rubber Kneader Machine,55l Banbury Rubber Mixer Machine,75kw Banbury Rubber Mixer Machine |
||
Product Description

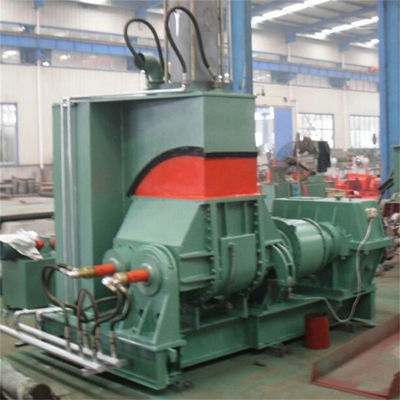

Chinese Supply Excellent Performance 55l Rubber Kneader Machine For Rubber Product Processing Machinery
The main purpose
This machine is mainly used for plasticizing and mixing of polymer or natural rubber, synthetic rubber, recycled rubber and other polymers.
Rotor assembly
The rotor adopts hard alloy welding, fine polishing, annealing heat treatment, making it more durable and longer life.
Kneader mixing chamber and side walls all through anneal heating treatment to secure lifetime no broken and no leaking.
The rotor adopts hard alloy welding, fine polishing, annealing heat treatment, making it more durable and longer life.
Hard alloy welded rotor, finely polishing,chrome plated again
Hard welded mixing chamber,finely polishing, chrome plated
Hard-tooth gear reducer: low carbon alloy steel, quenching treatment, gear grinding process.
Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
temperature: 5℃-40℃, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
|
Model
|
X(S)N35
|
X(S)N55
|
X(S)N75
|
X(S)N110
|
|
Total volume of mixing chamber (L)
|
75
|
125
|
180
|
250
|
|
Working volume of mixing chamber (L)
|
35
|
55
|
75
|
110
|
|
Driving motor power (KW)
|
55
|
75
|
110
|
185
|
|
Tilting motor power (KW)
|
5.5
|
5.5
|
5.5
|
7.5
|
|
Tilting angle
|
110
|
110
|
110
|
110
|
|
Rotational speed of the rotor ( front/rear) (r/min)
|
36/30
|
36/30
|
36/30
|
30/24.5
|
|
Pressure of compressed air (Mpa)
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Cooling water pressure (Mpa)
|
0.3-0.4
|
0.3-0.4
|
0.3-0.4
|
0.3-0.4
|
|
Size (L*W*H) (mm)
|
3150*1900*2880
|
3280*2120*3090
|
3280*2220*3250
|
4070*2712*3580
|
QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,SHENGHUALONG RUBBER MACHINERY exported to more than 40 countries,enjoy a good reputation in the world market.
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,SHENGHUALONG RUBBER MACHINERY exported to more than 40 countries,enjoy a good reputation in the world market.
