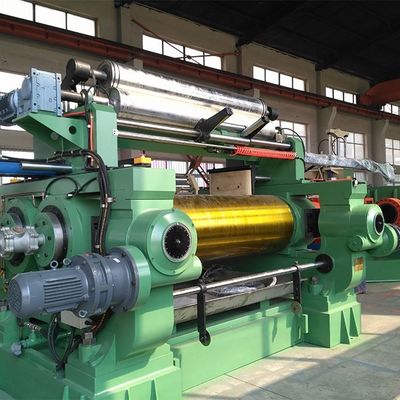

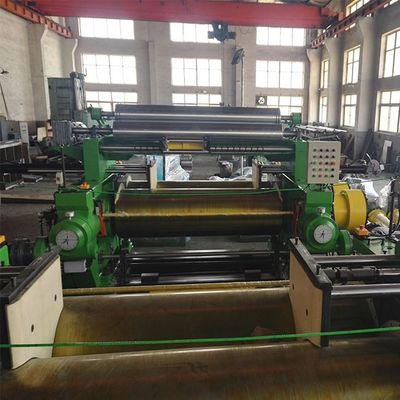

16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment

  • 16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment
  • 16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment
  • 16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment
  • 16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment
  • 16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment
  • 16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment
  • 16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment
Place of Origin Shandong, China
Brand Name HUALONG
Certification CE,ISO
Model Number XK-400
Minimum Order Quantity 1 set
Price $20,000.00/sets >=1 sets
Packaging Details standard packing
Delivery Time 30 days
Supply Ability 10 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter Of Roll(mm) 400 Mm Video Outgoing-inspection Provided
Machinery Test Report Provided Warranty Of Core Components 1 Years
Core Components PLC, Engine, Bearing, Gearbox, Motor, Bearbox Cooling Mode Water Cooling
Voltage Customized Model Type XK-400
Gearbox Hard Gear Reducer Lubrication Automatic Grease
Highlight

Two Roll Mill Rubber

,

NBR Silicone Mixing Mill

,

Silicone Mixing Mill
Leave a Message
Product Description
Factory Direct 16 Inch Automatic Rubber Two Roll Mixing Mill Machine , Silicone,SBR,NBR Mixing Mill Equipment

Equipment application and operation requirements
1. Main application: mixing mill is mainly used for rubber compound warming, mixing &sheeting, as well as raw rubber plasticating, mixing &sheeting.
2. Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Power supply: AC380V, 50Hz, 3-phase
C. Cooling water pressure: 2-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 0

16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 1
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 2
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 3





Safe emergency stop device
▲two emergency stop buttons ▲ overhead emergency stop rope ▲ kick emergency stop switch





   Non-operating side
▲ two emergency stop buttons ▲ overhead safety pull cord ▲ Kick emergency stop switch
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 4
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 5
Plus one plate of plane thrust bearing,each mill has 12 plates of bearing,saving energy by 10-15% and reducing grease usage by 20-25%
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 6
Open mixing mill machine the speed ratio gear made of 42CrMo alloy steel after forging and heat treatment
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 7
Rubber mixing mill machine frame with tempering treatment
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 8
Rubber mixing mill bearing seat with tempering heat treatment
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 9
Each bearing has two disc double row cylindrical roller bearings

Type
XK-400
XK-450
XK-560
XK-550B
XK-660
Working diameter of rolls (mm)
400
450
560/510
550
660
Working Length of rolls (mm)



1000
1200
1530
1500
2130
Front roll surface speed (m/min)
18.65
24.26
27.72
27.94
28.6
Friction ratio
1:1.27
1:1.27
1:1.2
1:1.22
1:1.24
Max. nip (mm)
10
15
15
15
15
Capacity per batch (kg)
18-35
25-50
35-50
50-60
165
Motor power (KW)
37
55
90
110
245
Size (L*W*H) (mm)
4350*1850*1785
5200*2380*1840
5845*2284*1978
5878*2475*2045
7455*3662*2080
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 10

16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 11
16 Inch Two Roll Mill Rubber SBR NBR Silicone Mixing Mill Equipment 12

QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
