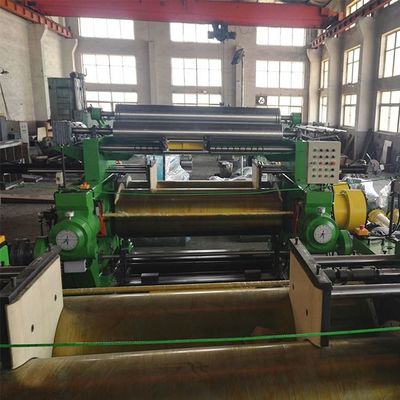

450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting

  • 450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting
  • 450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting
  • 450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting
  • 450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting
  • 450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting
  • 450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting
  • 450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting
Place of Origin Shandong, China
Brand Name HUALONG
Certification CE
Model Number XK-450
Minimum Order Quantity 1 set
Price $25,000.00/sets >=1 sets
Packaging Details standard packing
Delivery Time 30 days
Supply Ability 10 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Core Components PLC, Engine, Bearing, Gearbox, Motor, Bearbox Cooling Mode Water Cooling
Power (kW) 55kw Applicable Industries Rubber Plastic Industry
Machine Type Rubber Mixing Mill Machine Model Type XK-450
Bush Type Bearing Gearbox Hard Gear Reducer
Lubrication Automatic Grease Roller Hardness Chilled Cast Iron Hardness HS 72
Highlight

450mm Rubber Mixing Mill Machine

,

55Kw Rubber Mixing Mill

,

55Kw Rubber Mixing Mill Machine
Leave a Message
Product Description
Hot Sale Rubber Mixing Mill Rubber Mixing Mill Open Type XK-450
Type
XK-400
XK-450
XK-560
XK-550B
XK-660
Working diameter of rolls (mm)
400
450
560/510
550
660
Working Length of rolls (mm)
1000
1200
1530
1500
2130
Front roll surface speed (m/min)
18.65
24.26
27.72
27.94
28.6
Friction ratio
1:1.27
1:1.27
1:1.2
1:1.22
1:1.24
Max. nip (mm)
10
15
15
15
15
Capacity per batch (kg)
18-35
25-50
35-50
50-60
165
Motor power (KW)
37
55
90
110
245
Size (L*W*H) (mm)
4350*1850*1785
5200*2380*1840
5845*2284*1978
5878*2475*2045
7455*3662*2080
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 0

450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 1
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 2
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 3

Safe emergency stop device
▲two emergency stop buttons
▲ overhead emergency stop rope
▲ kick emergency stop switch

 Non-operating side
▲ two emergency stop buttons
▲ overhead safety pull cord
▲ Kick emergency stop switch
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 4
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 5
Plus one plate of plane thrust bearing,each mill has 12 plates of bearing,saving energy by 10-15% and reducing grease usage by 20-25%
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 6
Open mixing mill machine the speed ratio gear made of 42CrMo alloy steel after forging and heat treatment
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 7
Rubber mixing mill machine frame with tempering treatment
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 8
Rubber mixing mill bearing seat with tempering heat treatment
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 9
Each bearing has two disc double row cylindrical roller bearings
Equipment application and operation requirements
1. Main application: mixing mill is mainly used for rubber compound warming, mixing &sheeting, as well as raw rubber plasticating, mixing &sheeting.
2. Operation requirements
A. running environment: altitude＜1000m,
temperature: 5℃-40℃, max. relative humidity 95%
B. Power supply: AC380V, 50Hz, 3-phase
C. Cooling water pressure: 2-0.4Mpa
Cooling water temperature: ﹤25℃±3℃

450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 10
450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 11
QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD  450mm 55Kw Rubber Mixing Mill Machine For Mixing And Sheeting 12More than 30 years history of manufacturing experience. 6-8 years foreign sales experience staff, more efficiency and professional.

Technical advantages

Service timely, promise to give solution within 12 hours, guarantee customer trouble free.
For rubber machine, we mainly produce rubber kneader series, rubber mixing mill series, rubber extruder and strainer series, rubber powder line, rubber reclaim sheet line, rubber tube line, rubber mat line, tire making line and so on, we can make more than 200 series rubber machines, including environment protect machines, we also can make rubber machine according to customers requirement. Till now, HANGSEN have exported to more than forty counties, including USA, Greece, Spain, Poland, France, Italy, Algeria, Egypt, India, Russia, Argentina, Vietnam, Brazil, Indonesia, Thailand and so on. Our company uses exquisite and professional technology to serve all customers and is widely praised and appreciated by customers. We provide customers with high-quality and timely service.
