xProduct Details
| Condition | New | Video Outgoing-inspection | Provided |
|---|---|---|---|
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Machine Type | Plate Vulcanizing Press | Warranty | 1 Year |
| Applicable Industries | Manufacturing Plant, Rubber Product Producing Industry, Rubber Machinery Industry | Machine Type | Rubber Vulcanizing Press |
| Structure | Frame And Column Type | Application | Rubber Product Making Machine |
| Model | XLB- Series | Control System | PLC+touch Screen |
| Highlight | Soft Joint Rubber Vulcanizing Press,Rubber Flat Vulcanizing Machine,SGS Rubber Vulcanizing Press |
||
Product Description
Rubber Vulcanizing Press Rubber Soft Joint Production Line
|
Item No. |
Machine | Model |
Output (KGS/HOUR) |
Qty. |
| 1 | Rubber kneader | X (S) N-75 | 500-600KGS | 1set |
| 2 | Hoister | 75×3A | 500-600KGS | 1 set |
| 3 | Rubber Mixing Mill | XK-450 | 500-600KGS | 1 set |
| 4 | Rubber Strip Cutter | QTF-1000 | 500-600KGS | 1 set |
| 5 |
Rubber ball wrapping machine
|
WM-1 | 75PIECE/HOUR | 3 sets |
| 6 | Rubber Molding Press Machine | XLB-100 T | 16 PIECE/HOUR | 3 sets |

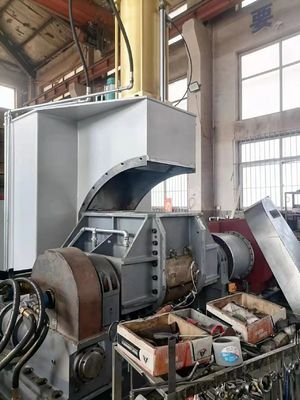

Rubber Kneader Machine: X(S)N75
|
Type |
X(S)N75 |
| Total volume of mixing chamber(L) |
180 |
| Working volume of mixing chamber(L) |
75 |
| Driving motor power(KW) |
110 |
| Tilting motor power(kw) |
5.5 |
| Tilting angle |
110 |
| Rotational speed of the rotor(front/rear) |
36/30 |
| Pressure of compressed air(mpa) |
0.6-0.8 |
| Seal system | Thin oil seal |
| Cooling water pressure |
0.3-0.4 |
|
Size:length*width*height(mm) |
3250*2210*3250 |
| Total weight (kgs) | About 10000kgs |
2.Hoister
|
Model |
55*3A |
|
Structure |
Section steel welding |
| Load weight |
45-60kg |
| Motor power |
2.2kw |
|
Weight |
Nearly 650kg |
| Overall size | Nearly 3000×900×1670mm |
| Theoretical rise time | Nearly 24 seconds |
XK-450 rubber mixing mill: XK450
| Type |
XK450 |
| Working diameter of rolls(mm) |
450 |
| Working length of rolls(mm) |
1200 |
| Front roll surface speed(m/min) |
24.26 |
| Friction ration |
1:1.27 |
|
Max.nip(mm) |
15 |
| Capacity per batch(kg) |
25-50 |
| Motor power(kw) |
55 |
|
Reducer |
Hardend reducer |
|
Overall dimension(Length*width*height) |
|
| Total weight (kgs) | About 10000kgs |
5.QTF-1000Rubber Strip Cutter
|
Item |
Main Data |
| Input film maximum width: |
1000mm |
| Maximum number of cutting strips: | 8 (16 knives, upper and lower knives)； |
| Slicing speed: |
15 m/min; (variable frequency control can be installed according to user requirements)
|
| The maximum cutting thickness : |
12mm |
| Control method: | The cutter manually adjusts the screw to control the up and down position of the cutter; adjust the width of the strip by adjusting the distance between the cutters; after the blade is worn, it can be re-ground with a grinder and reused. |
|
Conveying bed height: Motor power |
600mm. |
6.Rubber ball wrapping machine
Equipment size: 3200*1200*1500mm
Equipment weight: 1000KG
Power supply: 380V
Machine power: 4.5KW
Spindle rotation adopts servo motor, power 1.5KW
The main shaft moves forward and backward, the traveler is positioned forward and backward, and the reverse package forward and backward are all hydraulically controlled, with a power of 2.2KW
With foot pedal switch, infrared positioning and LED lighting
The whole machine PLC+touch screen automatic control
Machine function: automatic anti-packet, automatic catch-up
7.Rubber Molding Press Machine
Technical parameters of XLB-100T flat vulcanizing machine
| Type |
|
| Total Pressure |
|
| Maximum work pressure |
|
| Pressure per unit area |
31.2kg/cm
|
| Piston stroke | 400mm/300mm/300mm(Three-way piston cylinder) |
| Piston diameter | Cylinder diameter 273mm Piston diameter 220 Piston rod diameter 140 |
| Number of pistons |
|
| Number of layers of hot plate | 1 layer hot plate thickness 60mm |
| Thermal plate spacing |
|
| Hydraulic system | Blade plate compound pump 41B4 motor power 5.5KW |
| Electronic control system | PLC+touch screen automatic control, Inovance technology |
company introduction
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
