xProduct Details
| Warranty Of Core Components | 1 Year | Machine Type | Plate Vulcanizing Press |
|---|---|---|---|
| Warranty | 1 Year | Power (kW) | 5.5 |
| Showroom Location | Brazil, India, Russia | Application | Rubber Product Making Machine |
| Model | XLB- Series | Control System | PLC+touch Screen |
| Hot Plate Size | Customized | Pressure | Customized |
| Highlight | Automated Rubber Vulcanizing Press,Rubber Hydraulic Vulcanizing Machine,Rubber Vulcanizing Press Hydraulic |
||
Product Description

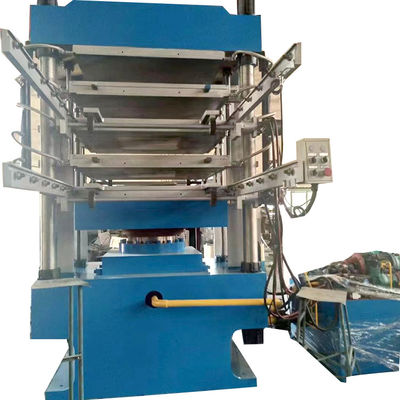

Rubber Vulcanizing Press Hydraulic Vulcanizing Press Automatic Rubber Vulcanizing Machine
The machine structure decides its precision , service life and stability.
1.The machine adopts the world advanced UG software and PO0-E3D analysis aided design to integrally cast and form the optimal design of high rigidity , tight structure and long life service.
2.Heating Plate is made of deep hole processing , after carburizing process,by using the principle of heat flux,high precision ,and the advantage temperature analysis of optimal design.
3.Use computer CNC processing to ensure the optimal precision of design.
4.Japanese technology planar average pressure correction with a highest precision up to 0.2mm.
5. Heating plate/ in-and-out template adopts carburizing treatment and is completed by grinding and nitriding , long wearproof,not easy to be deformed and high planar precision.
1.The machine adopts the world advanced UG software and PO0-E3D analysis aided design to integrally cast and form the optimal design of high rigidity , tight structure and long life service.
2.Heating Plate is made of deep hole processing , after carburizing process,by using the principle of heat flux,high precision ,and the advantage temperature analysis of optimal design.
3.Use computer CNC processing to ensure the optimal precision of design.
4.Japanese technology planar average pressure correction with a highest precision up to 0.2mm.
5. Heating plate/ in-and-out template adopts carburizing treatment and is completed by grinding and nitriding , long wearproof,not easy to be deformed and high planar precision.
The material is made of Q235A steel plate with overall numerical control cutting, and the surface is sandblasted.
Oil cylinder
The material of the oil cylinder is high quality QT500-7, ductile iron QT-500 is passivated after aging, or forging material is used, tensile strength ≥50kgf/mm
Features
1.Die entry and exit rail (if equipped):
The sliding surface is made of S50# steel, and has been heat-treated to a hardness of HRC 55-58. It has a long wear-resistant life and is equipped with a bearing design to make the entry and exit molds slide stably.
2.Hydraulic system:
The main hydraulic components adopt well-known brands such as Taiwan Qiyang, Beijing Huade, Yuyan, etc., easy to buy and replace, reasonable layout, and easy to maintain and repair.
The main hydraulic components adopt well-known brands such as Taiwan Qiyang, Beijing Huade, Yuyan, etc., easy to buy and replace, reasonable layout, and easy to maintain and repair.
3.Electrical system:
The main PLC electrical components of this machine adopt Mitsubishi's internationally well-known brands. The electrical device has the advantages of small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work.
4.Heat insulation board:
The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa or more, and a heat insulation coefficient of 0.031.
|
Type
|
XLB240×240×2
|
XLB350×350×2
|
XLB400×400×2
|
XLB500×500×2
|
XLB600×600×2/4
|
XLB700×700×2
|
XLB750×850×2/4
|
XLB900×900×2Q
|
|
Total pressure (MN)
|
0.15
|
0.25
|
0.5
|
0.63
|
1.00
|
1.20
|
1.60
|
2.00
|
|
Plate distance(mm)
|
125
|
125
|
125
|
125
|
125
|
125
|
200
|
300
|
|
Working layer number
|
2
|
2
|
2
|
2
|
2-4
|
2
|
2-4
|
2
|
|
Unit area pressure of hot plate(Mpa)
|
2.60
|
2.04
|
3.13
|
2.52
|
2.77
|
2.45
|
2.51
|
2.47
|
|
Plunger stroke(mm)
|
250
|
250
|
250
|
250
|
250/400
|
250
|
400
|
400
|
|
Heating mode
|
electricity
|
electricity
|
electricity/steam
|
electricity/steam
|
electricity/steam
|
steam
|
electricity/steam
|
steam
|
|
Main motor power (KW)
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
3
|
5.5
|
|
Overall dimension (L×W×H) (mm)
|
1200×350×1300
|
1400×480×1380
|
1600×500×1480
|
1750×600×1540
|
1880×720×1680
|
2000×850×1750
|
2250×1200×2200
|
1400×900×2400
|
|
Frame form
|
Post
|
Post
|
Post
|
Post
|
Post
|
Post
|
Frame
|
Frame
|
.
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
