60KW Scrap Tire Shredder Tyre Crushing Machine Full Automatic

LP-1200 Rubber Shredder Machine Rubber Powder Line Waste Tire Recycling Line

Rubber powder production line Instruction

Working flow:

Waste tire---Wire drawing machine---tire cutter--Rubber shredder--- Steel wire separating machine---magnetic separating ---Rubber powder

--fiber seperator.

1. Steel wire drawing machine--extract the thick steel wire.

2.tire cutter--cut the big tires into three parts

3. Conveyor-Transport the tire to the shredder.

4. Twin-shaft shredder--Shears the tire into 5- 10cm blocks;

5. Recirculation system--To control the size of shreds going to the rapers;

6. Raspers-Reduce the shreds into 15. 20mm chips and liberates steel from the rubber;

7. Over belt magnet--Separation of liberated steel from the rubber chips;

8. Vibratory feeder--Transports the rubber chips;

9. Rubber granulator machine--Size reduction of the chips to 1-4mm granules and liberates the textile fraction to air flow separation.

10. Grinder machine --Grinder rubber powder.

11.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.

1.wire drawing machine

The machine is mainly consist of Base, Base frame, Pull hook, Reduction gear, Electric control device, etc.

Install two shafts on base frame, between shafts and base frame install a pull hook, install driven gear on one end of the shaft mesh with driving gear, motor with brake type, to prevent motor inertial rotation.

In the process of drawing, two hooks hook the tire wheel rim respectively, move to the steel wire and separation of rubber’s groove plate. After go through the mouth plate, the wire along the hole on both side of the plate is pulled out slowly. When the wires are completely out of the wheels, motor will stop automatically, then get out of the wires can do next tire wire drawing.

NOTICE: This machine only to adapt to car tires(≤F800mm). Tires should be placed at the middle of the base frames.

APPLICATION:
The machine is applicable for taking off steel rings from tire beads.

Technical data

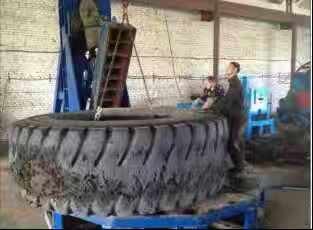

2.QDJ-1200 Tyre Cutting Machine

The machine is mainly consist of Base, Static cutter holder, Moving cutter holder, Cut off oil cylinder, Press rubber frame, Press rubber oil cylinder, Hydraulic pressure station, Electric control device, etc.

The static cutter holder and moving cutter holder connected with base plate parallel by bolt. Rubber cutting cylinder and frame connected by the middle base. Press rubber oil cylinder fix on the supporting plate of column’s upper side. Rubber pressure frame fix on the corner which between base and frame by revolving shaft.

The hydraulic pressure station is consist of electromagnetic relief valve, type O electromagnetic valve, throttle valve, motor, low noise vane pump, etc. Put vane pump in the tank can give plenty space for the fuel tank gap, also very beautiful for the overall appearance.

 Specifications

1.1 Overall size(L×W×H): 2080×1000×2130mm

1.2 Qty. of cutter: 4pieces

1.3 Cutter stroke: nearly 600mm

1.4 Cylinder pressure: nearly 12T

1.5 Working oil pressure: 6.3Mpa

1.6 Oil pump: Flow 40 L/mi, pressure 6.3Mpa

1.7 Working oil grade: No. 32 mechanical oil

1.8 Motor model: Y132M2-6, power: 7.5---11kW

3.rubber shredder machine

Characteristic
This machine has the compact structure,advanced technology,low power consumption,high efficiency,crushing room with off structure ,easy to maintenance,etc.The machine,adopting excellent hard alloy steel as it blade,high hard and wearable,is druable;Circle mesh screen has gridding structure,dropping pieces with large area,is good for rubber pieces.

4 .Rubber Crusher: This is waste tire recycling main machine

5. Rubber Granulator Production Line

​

6.fiber seperator

 Main technical specifications

1). Impeller: The diameter of the fan blade is φ1100 mm, and the number is 8 pieces.

2). Wheel shell size: the equipment body part is φ1600 mm, and the total height of the equipment is about 3400 mm.

3). Spindle speed: 377 (and 464) rpm.

4). Main motor: JQ2-52-6 5.5kw 760rpm.

5). Feeder revolutions: 29 revolutions per minute.

6). Feeder motor: JW092—4 0.4 kW 1370 rpm

QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
