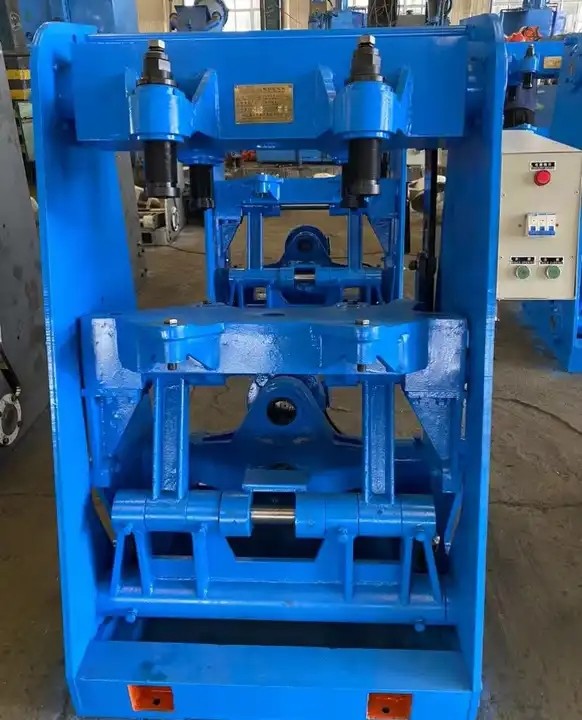

5.5KW Plastic Ball Manufacturing Machine Rubber Vulcanizing Press Machine
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New, New | Video Outgoing-inspection | Not Available |
|---|---|---|---|
| Core Components | PLC, Motor, Pressure Vessel | Machine Type | Plate Vulcanizing Press |
| Weight | 8900 | Warranty | 1 Years |
| Power (kW) | 5.5 | Key Selling Points | Easy To Operate |
| Showroom Location | None | Applicable Industries | Manufacturing Plant, Farms, Other |
| Highlight | 5.5KW Plastic Ball Manufacturing Machine,Rubber Vulcanizing Press Machine,5.5KW Rubber Vulcanizing Press Machine |
||
Product Description
Tennis Ball Making Machine And Tennis Machine From Shandong Deren Rubber Preformer
| Parameters/version | XLB350*350*2 | XLB400*400*2 | XLB500*500*2 | XLB600*600*2/4 |
| Mould closing force | 0.25 | 0.5 | 0.8 | 1 |
| Hot plate spacing | 125 | 125 | 125 | 125 |
| Hot plate layer | 2 | 2 | 2 | 2/4 |
| Plunger stroke | 250 | 250 | 250 | 250/500 |
| Heating way | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/stream |
| Main motor power | 2.2 | 2.2 | 2.2 | 2.2 |
| The thermal power | 2.4kw/board | 3kw/board | 3kw/board | 7.5kw/board |
| Size(l*w*h) | 1450*400*1350 | 1600*400*1440 | 1450*690*1818 | 1880*780*1660 |
| Weight(kg) | 1200 | 1500 |
1.Material of steel plate
We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel.
2.Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment. (Carbon dioxide gas shielded welding,alloyed welding wire).submerged arc welding, VSR treatment after weldment.
3.Piston
The material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.
4.Heating way&precision temperature control
Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)
range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system
the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
