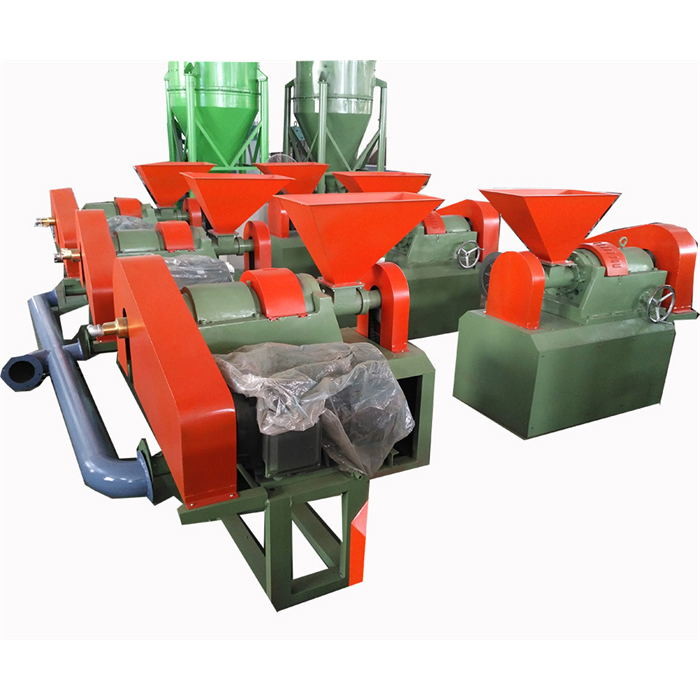

100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line

  • 100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line
  • 100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line
  • 100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line
  • 100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line
  • 100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line
  • 100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line
Place of Origin Shandong, China
Brand Name HUALONG
Certification ISO,CE
Model Number XMF-420
Minimum Order Quantity 1 set
Price $8,300.00/sets >=1 sets
Packaging Details standard packaging
Delivery Time 30 days
Supply Ability 30 Set/Sets per Month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Video Outgoing-inspection Provided Machinery Test Report Provided
Warranty Of Core Components 1 Year Core Components PLC, Bearing, Motor
Tire Machine Type Tire Recycling Machine Voltage 220/380V
Key Selling Points High-accuracy Power (kW) 22 KW
Applicable Industries Manufacturing Plant Weight 2000kg
Marketing Type New Product 2021 Port Qingdao
Highlight

Crumb Rubber Grinder Machine

,

mesh Rubber Grinder Machine

,

Tire Recycling Production Line
Leave a Message
Product Description

Waste Tire Recycling Line Crumb Rubber Grinding Machine



Introduction

Recycling rubber tire grinding mill machine is used to mill 1~4mm pure rubber granules into rubber powders 30~100mesh under normal condition.

It mainly consists of milling motor, feeding servo motor, frequency conversion feeder, motor adjusting device, feeding hopper, fixed and rotary mill discs, machine frame, mian shaft, collecting pipe, circulating water cooling system.

100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line 0




100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line 1
100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line 2
100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line 3

Structure and Principle

1. The machine uses tungsten carbide as the milling surface of the milling disc, the milling disc base is made of special treated materials, crashing-proof, wearable, durable and good ductility;

2. The whole machine adopts horizontal structure, most parts are CNC processed to ensure the installation accuracy;

3. Compact structure, low power and vibration, easy operation and maintenance;

4. The feeding system adopts ultra-red monitor controlled by PLC to maximum the output. The clearance between fixed and rotary discs are also controlled by PLC motors, which has greatly improved the quality and fineness of the rubber powder;

5.Internal circulating water cooling system can ensure ideal temperature for the milling discs during production, the rubber powder will not get burned or sticky.

Main technical paratmeters
XMF-270
XMF-330
XMF-380
XMF-420
In-feed size(mesh)
10-20
10-20
5-20
5-20
Output size (mesh)
40-60 60-80 80-120
40-60 60-80 80-120
40-60 60-80 80-120
40-60 60-80 80-120
Capacity (kg/h)
80-120 60-80 40-60
120-150 90-110 50-60
150-180 110-130 70-80
170-210 130-150 80-100
Power of main motor(KW)
22
30
37
45
Power of in-feed motor(KW)
1.5



1.5
1.5
2.2
Dimensions(mm)
1800*1700*1550
2050*1710*1600
2100*1750*1620
2200*1800*1900
Weight(kg)
2000
2600
2900
3500
100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line 4
100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line 5
100 Mesh Crumb Rubber Grinder Machine Tire Recycling Production Line 6
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
