xProduct Details
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
|---|---|---|---|
| Warranty Of Core Components | 1 Year | Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump |
| Applicable Industries | Manufacturing Plant, Rubber Product Producing Industry, Rubber Machinery Industry | Machine Type | Rubber Vulcanizing Press |
| Structure | Frame And Column Type | Application | Rubber Product Making Machine |
| Control System | PLC+touch Screen | Hot Plate Size | Customized |
| Highlight | Vulcanizing Press Tennis Ball Making Machine,Tennis Ball Rubber Vulcanizing Press,PLC Touch Rubber Vulcanizing Press |
||
Product Description

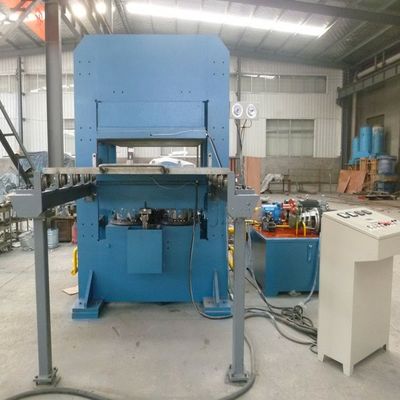

Frame Type Rubber Tennis Ball Making Machine, Rubber Car Mat Making Machine, Rubber Vulcanizing Press
Product Overview
Rubber Vulcanizing Press
To make rubber mat, rubber seal, rubber car mat, rubber tile, tennis ball.
PRODUCT SPECIFICATIONS
Four Main Data of the Frame Rubber Vulcanizing Press Machine:
1. Pressure: 300T
2. Working Layers: 2 working layers
3. Plate size: 1200*600mm
4. Distance between hot plate: 300mm
Please attached these for requirements for inquiry
|
Type
|
XLB240×240×2
|
XLB350×350×2
|
XLB400×400×2
|
XLB500×500×2
|
XLB600×600×2/4
|
XLB700×700×2
|
XLB750×850×2/4
|
XLB900×900×2Q
|
|
Total pressure (MN)
|
0.15
|
0.25
|
0.5
|
0.63
|
1.00
|
1.20
|
1.60
|
2.00
|
|
Plate distance(mm)
|
125
|
125
|
125
|
125
|
125
|
125
|
200
|
300
|
|
Working layer number
|
2
|
2
|
2
|
2
|
2-4
|
2
|
2-4
|
2
|
|
Unit area pressure of hot plate(Mpa)
|
2.60
|
2.04
|
3.13
|
2.52
|
2.77
|
2.45
|
2.51
|
2.47
|
|
Plunger stroke(mm)
|
250
|
250
|
250
|
250
|
250/400
|
250
|
400
|
400
|
|
Heating mode
|
electricity
|
electricity
|
electricity/steam
|
electricity/steam
|
electricity/steam
|
steam
|
electricity/steam
|
steam
|
|
Main motor power (KW)
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
3
|
5.5
|
|
Overall dimension (L×W×H) (mm)
|
1200×350×1300
|
1400×480×1380
|
1600×500×1480
|
1750×600×1540
|
1880×720×1680
|
2000×850×1750
|
2250×1200×2200
|
1400×900×2400
|
|
Frame form
|
Post
|
Post
|
Post
|
Post
|
Post
|
Post
|
Frame
|
Frame
|
Related Products
4 Layers XLB-1200*1200 Rubber Tile Machine
Automatic Rubber Car Mat Making Machine
Column Rubber Curing Press
Successful Project
Project in Thailand
Vacuum Rubber Molding Press
Project in India
Column Type Rubber Vulcanizer
Project in Russia
Rubber Tile Making Machine
SIMILAR PRODUCTS
Company Profile
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
