xProduct Details
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
|---|---|---|---|
| Warranty Of Core Components | 1 Year | Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump |
| Machine Type | Plate Vulcanizing Press | Applicable Industries | Manufacturing Plant, Rubber Product Producing Industry, Rubber Machinery Industry |
| Machine Type | High Speed Rubber Vulcanizing Press | Structure | Column Type |
| Application | Rubber Product Making Machine | Model | 200T,250T,300T,350T,1000T |
| Control System | PLC+touch Screen | Daylight Gap | Customized |
| Working Layers | Customized | ||
| Highlight | 2RT Rubber Compression Molding Machine,Hydraulic Vulcanizing Press,2RT rubber compression molding press |
||
Product Description

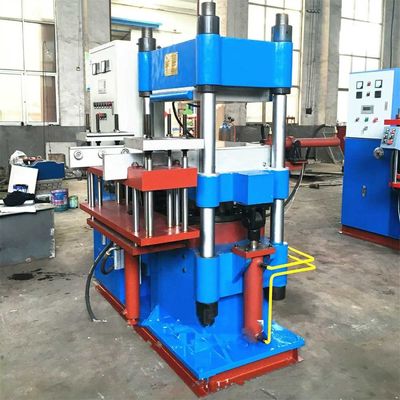

Automatic Hydraulic Press Compression Rubber Molding Machine
High Speed Molding Machine, 2RT Hydraulic Molding Press Machine, Rubber Vulcanizing Press Machine
1. Features
1. This type of machine is multi-functional, because it is suitable to be used for top opening double or triple mold plates.
2. High force employs dual pressure and each oil system is designed seperately. It is consistent, quiet and low frequency of malfunctions. Two shafts can be operated simultaneous.
3. Slow moving speed is available for alignment more safe and more accurate.
4. Molds can be precisely positioned, A 100% safety design for positioning is available to prevent molds from damage.
5. The speed to open close the mold is adjustable. It is very accurate and reliable.
2. 2RT,3RT, 4RT front top mold-open Hydraulic Molding Press
1. The 3RT surpasses the traditional top opening mold that can be used for the triple or four mold plates with the design of opening mold and pushing out the mold in between.
2. The opening mold can be adjustable by the software with separate opening , seperate pushing out th emold in between, continous opening and continuous pushing out the mold in between.
3. Main Parameter
|
Model |
200Ton |
250Ton |
300Ton |
350Ton |
400Ton |
500Ton |
|
Clamping force(Ton) |
200 |
250 |
300 |
350 |
400 |
500 |
|
Stroke(mm) |
250 |
250 |
250 |
300 |
300 |
300 |
|
Heating plate size(mm) |
up 503x508mm |
up 600x600mm |
up 600x600mm |
up 700x700mm |
up 800x800mm |
up 950x950mm |
|
Main cylinder diameter(mm) |
355 |
400 |
450 |
475 |
500 |
560 |
|
Horse power(HP) |
10x2 |
10x2 |
10x2 |
15x2 |
15x2 |
15x2 |
|
Type of mold opening |
Up/Down-In/out-Rail-2RT-3RT-4RT |
Up/Down-In/out-2RT-3RT-4RT |
||||
|
Electrical power(KW) |
22 |
34 |
34 |
43 |
48 |
72 |
|
Gross weight(KG) |
9000 |
11500 |
13500 |
16500 |
19500 |
23500 |
|
Machine size(L*W*H mm) |
3000x2360x2330 |
3300x2710x2530 |
3450x2630x2600 |
3600x2950x2600 |
3800x3300x2800 |
4200x3600x3300 |
4. Product details:
QINGDAO SHENGHUALONG RUBBER MACHINERY was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine and laminating machine.
As a rubber machinery manufacturer ,Hangsen has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,
The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
