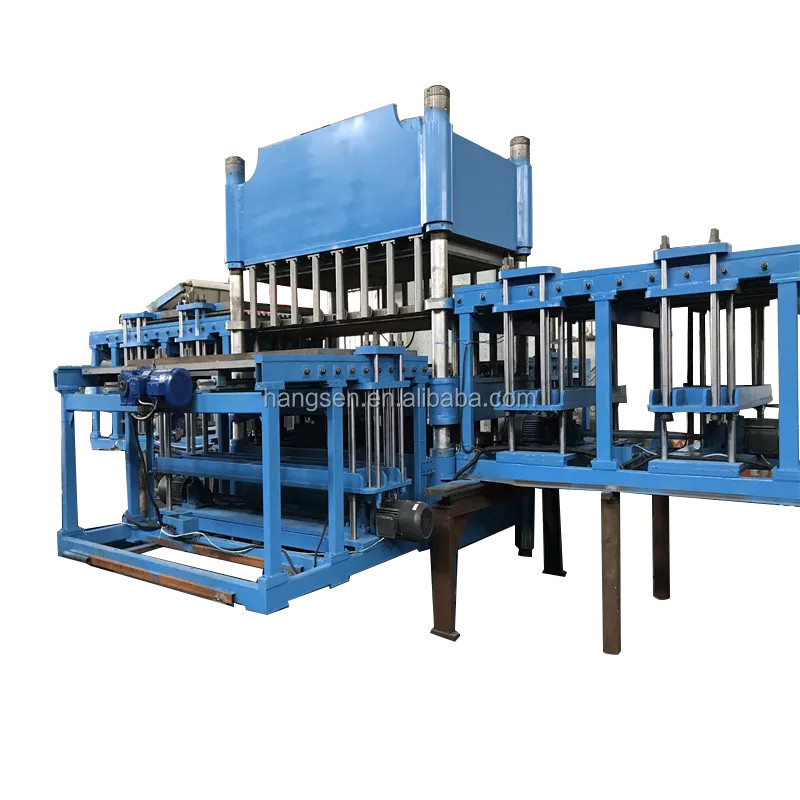

Frame Plate Rubber Vulcanizing Press 8KW 11KW Rubber Tile Making Machine
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Video Outgoing-inspection | Provided |
|---|---|---|---|
| Machinery Test Report | Provided | Warranty Of Core Components | 2 Years |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor | Machine Type | Plate Vulcanizing Press |
| Voltage | Customized | Dimension(L*W*H) | 1490*1000*2510 |
| Weight | 4.5 | Warranty | 1 Year |
| Power (kW) | 5.5KW | Key Selling Points | Long Service Life |
| Showroom Location | Russia, Sri Lanka | Applicable Industries | Manufacturing Plant, Rubber Product Making Industry |
| Machine Type | Rubber Vulcanizing Press | Machine Size | Customized, XLB-12000*1200/ XLB-1300*1300 |
| Heating Mode | Heating/ Oil/ Steam | Automatic Type | Full Automatic Or Semi-auto |
| Sales Mode | Factory Direct Sales | Machine Color | Blue Or Green Or Customized |
| Certificate | CE ISO | After Warranty Service | Video Technical Support, Online Support, Spare Parts |
| Daylight | Can Be Customized | Advantage | Without Oil Spiliing Or Off Pressure |
| Marketing Type | Ordinary Product 2021 | Port | Qingdao |
| Highlight | Frame Plate Rubber Vulcanizing Press,11KW Rubber Tile Making Machine,8KW Rubber Vulcanizing Press |
||
Product Description
Automatic Rubber Tile Making Machine, Rubber Vulcanizing Press
Frame plate
The material is made of Q235A steel plate with overall numerical control cutting, and the surface is sandblasted.
Oil cylinder
The material of the oil cylinder is high quality QT500-7, ductile iron QT-500 is passivated after aging, or forging material is used, tensile strength ≥50kgf/mm
The plunger is made of LG-P chilled alloy material, which has high surface hardness and is not easy to wear. The depth of the chilled layer is 8-15mm and the hardness is HRC 70 degrees, which improves the overall service life of the plunger.
Die entry and exit rail (if equipped): The sliding surface is made of S50# steel, and has been heat-treated to a hardness of HRC 55-58. It has a long wear-resistant life and is equipped with a bearing design to make the entry and exit molds slide stably.
Hydraulic system: The main hydraulic components adopt well-known brands such as Taiwan Qiyang, Beijing Huade, Yuyan, etc., easy to buy and replace, reasonable layout, and easy to maintain and repair.
Electrical system: The main PLC electrical components of this machine adopt Mitsubishi's internationally well-known brands. The electrical device has the advantages of small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work.
Heat insulation board: The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa or more, and a heat insulation coefficient of 0.031.
|
Type
|
XLB-DQ(F)1200×1200×2
|
XLB-DQ(F)1300×1200×1
|
XLB-Q(F)1200×2500×1
|
XLB-Q(F)1500×2000×1
|
XLB-Q(F)2000×3000×1
|
|
Total pressure (MN)
|
3.15
|
5.60
|
7.50
|
10.00
|
18.00
|
|
Plate size(mm)
|
1200×1200
|
1300×12000
|
1200×2500
|
1500×2000
|
2000×3000
|
|
Daylight(mm)
|
200
|
400
|
400
|
400
|
400
|
|
Layer
|
2
|
1
|
1
|
1
|
1
|
|
Piston stroke(mm)
|
400
|
400
|
400
|
400
|
400
|
|
Plate unit area pressure (kg/ cm2)
|
22
|
21.15
|
25
|
33.5
|
30
|
|
Main motor power (KW)
|
5.5
|
8
|
9.5
|
11
|
26
|
|
Overall dimension (L×W×H) (mm)
|
1685×1320×2450
|
2000×1860 ×2500
|
2560×1700×2780
|
2810×1550×3325
|
2900×3200×2860
|
|
Weight (kg)
|
9500
|
17000
|
20000
|
33000
|
66000
|
FAQ
I: Why choose us?
l.More than 30 years history of SHENGHUALONG factory.
6-8 years foreign sales experience staff, more efficiency and professional. Engineers oversea service more than 30 countries.
2.ISO: 9001, CE, BV certification approval.
3.Service timely, promise to give solution within 12 hours, guarantee customer trouble free.
4.Short delivery date, no delay. Accept urgent order for prompt shipment.
Q2: What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, no delay.
Accept urgent order for prompt shipment.
Q3: What's the warranty statement?
We warrants all the products manufactured by us to free from defects in material and workmanship. Under normal use of a period of 12 months or 36 months after the date of the original purchase.
And we have after warranty service: video technical support, online support, spare parts will be offered to you.
Q4: What about oversea service ?
We will arrange oversea setting up and training works if customer need. Customer should pay for accommodation, tickets and salary.
Qingdao SHENGHUALONG Rubber Machinery Co.,Ltd
We are manufacturer for rubber machine, which have more than forty years' experience.
