16Mpa Vulcanizing Press Rubber Conveyor Belt Production Line Blue Green
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Cast Steel | Color | Blue,green |
|---|---|---|---|
| Belt Width | 800mm | Structure | Steel |
| Total Thickness | 20MM | Press Size | 1200x2500mm |
| Warantee | 1 Year | Certificate | CE,ISO |
| Highlight | 16Mpa Vulcanizing Press,Press Rubber Conveyor Belt Production Line,Vulcanizing Rubber Conveyor Belt Production Line |
||
Product Description

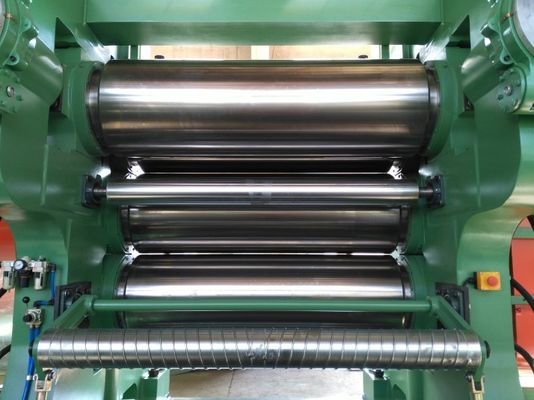

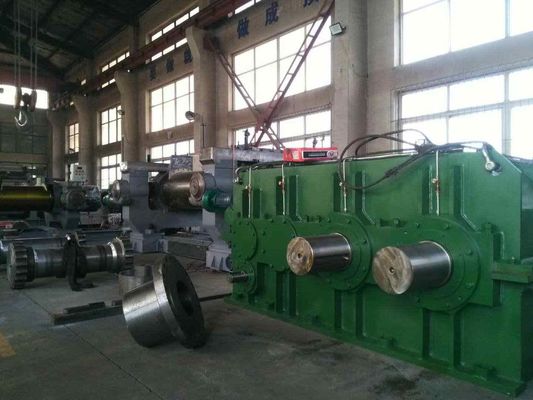

Rubber Conveyor Belt Production Line
rubber conveyor belt vulcanizing press machine production line production line
1,rubber conveyor belt vulcanizing press machine
| Type | XLB-Q1200x2500x1/10.00MN |
| Clamping force | 10.00MN |
| Working hydraulic pressure | 16Mpa |
| Hot plate size | 1200x2500x67mm |
| Unit area pressure | 33kg/cm2 |
| Working layers | 1 layer |
| Piston stroke | 300mm |
| Piston diameter | 360mm |
| Piston Qty. and material | 6 sets, chilled cast iron |
| Hydraulic cylinder Qty. and material | 6 sets, nodular cast iron |
| Distance between hot plate | 300mm |
| Heating mode | Electric (conduction oil) |
| Main motor power | High voltage motor 11KW*1 low voltage motor 7.5KW*2 |
| Sealing element | 12 sets(main machine 6 sets, accessories 6 sets) |
| Close mould Speed | 15mm/s |
| Open mould speed | 13mm/s |
| Structure | Frame type |
| Control method | PLC control, automatic clse and open mold, automatic exhaust |
| Overall size | 4250*2500*4350 |
| Weight | Nearly 36T |
2,1. Main machine technical parameters: XLB-Q1400X3000/13.00MN Rubber Belt Vulcanizer
| 1. | Type | XLB-Q1400*3000/13.00MN |
| 2. | Clamping force | 13.00MN |
| 3. | Unit area pressure | 3.0Mpa |
| 4. | Hot plate size | 1400*3000*76mm |
| 5. | Distance between hot plate | 300mm |
| 6. | Piston diameter | 400mm |
| 7. | Piston stroke | 300mm |
| 8. | Working hydraulic pressure | 17.0Mpa |
| 9. | Cylinder Qty. | 6 pieces |
| 10. | Moving speed of hot plate |
Rising: ≥15mm/s Down: 13mm/s |
| 11. | Heating mode | Steam heat (or heat transfer oil) |
| 12. | The cooling range of the hot plate | Inlet: 200mm, Outlet:100mm |
| 13. | Low pressure pump motor power | 2×11kw |
| 14. | High pressure pump motor power | 15kw |
| 15. | Weight | 45000KG |
3.1 Cloth take-up part of the unwinding device (one set)
| Reducer | Model XW-4 |
| Motor 1.5KW | Model Y100L-6 |
| The maximum speed of the reel | 50r/min |
3.2 Traction device (one set for each front and rear)
| ZQ-Reducer | Model ZQ35 |
| Diameter and Effective Length of Traction Roller | Ф220 1400 |
| Traction linear velocity | 16m/min |
3.3 Blessing and stretching device (one set for front, rear and middle blessing)
| Clamping cylinder |
Dia.:Ф200mm Stroke:200mm Quantity: 2 |
| Clamping force | 1.0MN |
| Working oil pressure | 16.0MPa |
| Stretching cylinder |
Dia.: Ф200mm Stroke: 400mm Quantity:2 |
| Total tensile force | 1.0MN |
3.4 Coiling device (one set)
| Motor |
Model Y160L-8 Power: N=5.5kw Rotating speed n=720r/min |
| Reducer | Model ZQ35 |
| Take-up roll |
Roll diameter Ф320 Line speed 12.2m/min |
| Maximum tape width | 1400mm |
3.5 Repair machine (one)
| Motor | Power: N=3kw |
| Double pump | Low pressure rated flow 100L/min |
| Plunger diameter | Ф340mm |
| Plunger stroke | 300mm |
| Number of hydraulic cylinders | 2 |
| Hot Plate Specifications | 1400×800×60 |
3.6 Auxiliary hydraulic system
| Motor | Power N=11kw |
| Axial Piston Pump Model |
63YCY Preset pressure P=25MPa |
| Actual work pressure | 16.MPa |
Auxiliary weight: 34000Kg
